Step1: Product

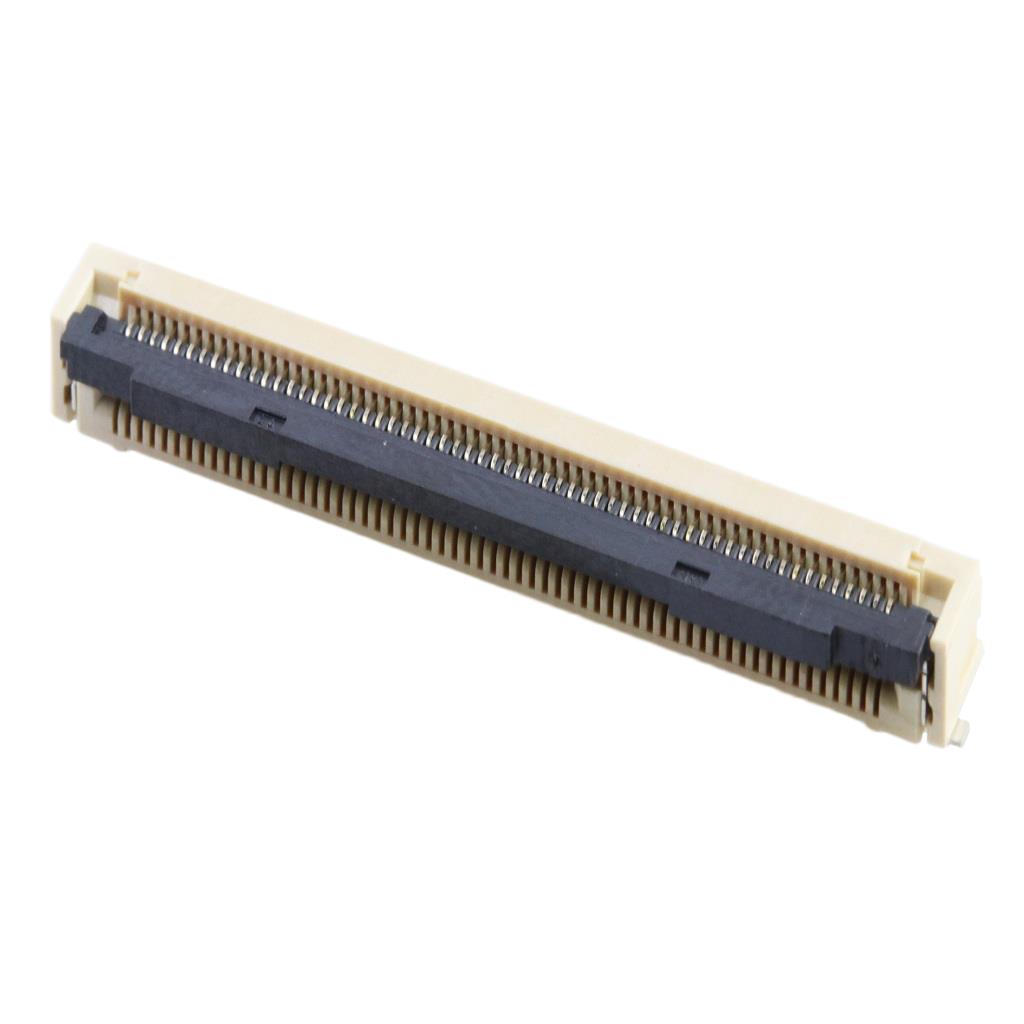

Molex 1040606017
Image shown is a representation only
Manufacturer
Manufacturer No
1040606017
Quantity
21
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
CONN FFC BOTTOM 60POS 0.5MM R/A
Detailed Description
60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
Easy-On 104060
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR)
Part Status
Discontinued at DigiKey
Termination
Solder
Manufacturer
Molex
Housing Color
Beige
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tabbed
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polybutylene Terephthalate (PBT), Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.098" (2.50mm)
Base Product Number
104060
Number of Positions
60
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-20°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
2.00µin (0.051µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On 104060 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Part Status | Discontinued at DigiKey |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Beige |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.098" (2.50mm) |
| Base Product Number | 104060 |
| Number of Positions | 60 |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -20°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 2.00µin (0.051µm) |
| Material Flammability Rating | UL94 V-0 |
