Step1: Product

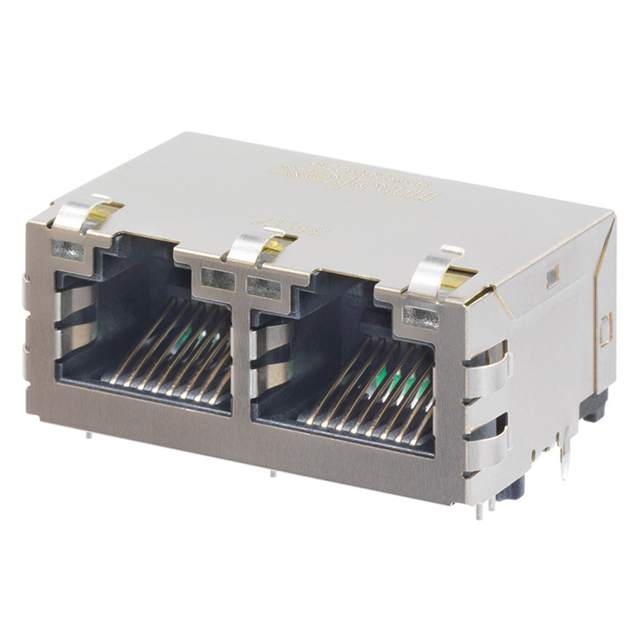

Molex 0938263006
Image shown is a representation only
Manufacturer
Manufacturer No
0938263006
Packaging
Tray
Description
CONN JACK 2PORT PCB
Detailed Description
2 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
Series
MXMag 93826
Features
Board Guide
LED Color
Green, Yellow - Green, Yellow
Packaging
Tray
Shielding
Shielded, EMI Finger
Orientation
90° Angle (Right)
Termination
Solder
Applications
10/100/1000 Base-T, AutoMDIX
Manufacturer
Molex
Mounting Type
Through Hole
Tab Direction
Up
Connector Type
RJ45
Contact Finish
Gold
Number of Rows
1
Number of Ports
2
Shield Material
Brass
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Height Above Board
0.555" (14.10mm)
Base Product Number
093826
Operating Temperature
0°C ~ 70°C
Contact Finish Thickness
2.00µin (0.051µm)
Number of Cores per Jack
8
| Attribute | Value |
|---|---|
| Series | MXMag 93826 |
| Features | Board Guide |
| LED Color | Green, Yellow - Green, Yellow |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Manufacturer | Molex |
| Mounting Type | Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 2 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Height Above Board | 0.555" (14.10mm) |
| Base Product Number | 093826 |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 2.00µin (0.051µm) |
| Number of Cores per Jack | 8 |
