Step1: Product
Molex 0783482011

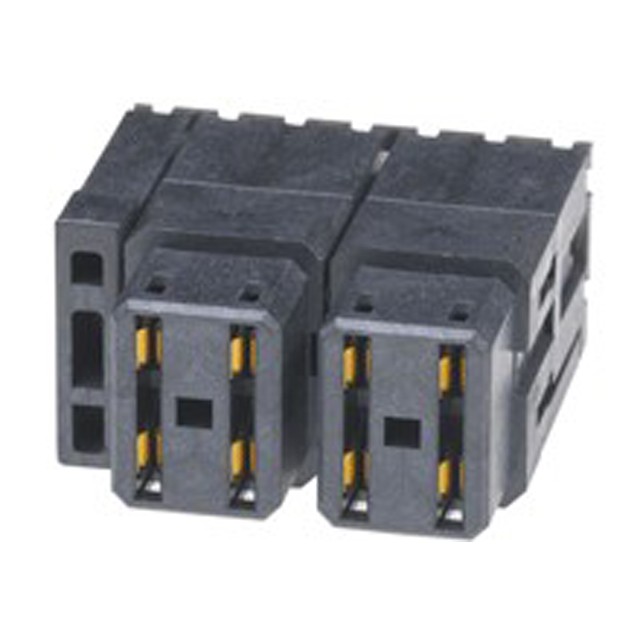

Image shown is a representation only
Manufacturer
Manufacturer No
0783482011
Packaging
Bulk
Description
IMPACT PWR 3PR RAREC R/HDNPF.76A
Detailed Description
8 Connector Receptacle, Female Blade Sockets Through Hole, Right Angle Black Impact, Hold Down Right
DataSheet
Color
Black
Pitch
0.205" (5.20mm)
Series
Impact 78348
Features
Board Guide
Packaging
Bulk
Part Status
Active
Termination
Press-Fit
Manufacturer
Molex
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Blade Sockets
Contact Finish
Gold
Number of Rows
2
Voltage Rating
250V
Connector Style
Impact, Hold Down Right
Number of Columns
4
Base Product Number
078348
Number of Positions
8
Current Rating (Amps)
15A
Operating Temperature
-55°C ~ 85°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.205" (5.20mm) |
| Series | Impact 78348 |
| Features | Board Guide |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Molex |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Connector Style | Impact, Hold Down Right |
| Number of Columns | 4 |
| Base Product Number | 078348 |
| Number of Positions | 8 |
| Current Rating (Amps) | 15A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
