Step1: Product

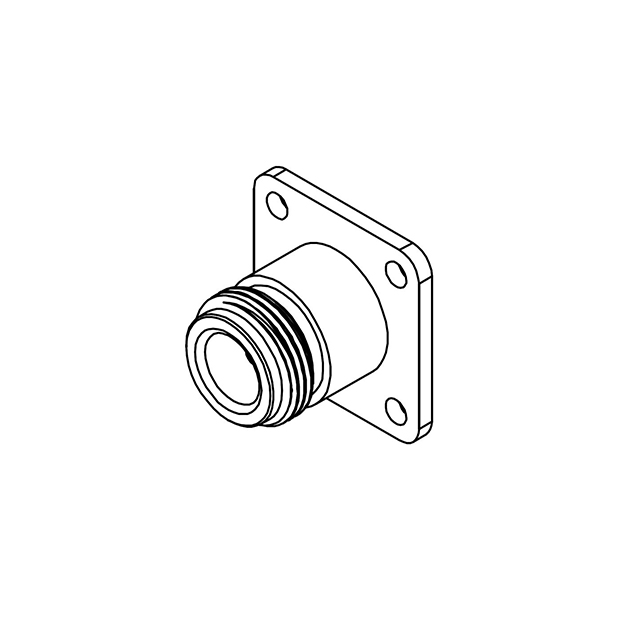

Molex 0732705003
Image shown is a representation only
Manufacturer
Manufacturer No
0732705003
Packaging
Bulk
Description
N STRAIGHT PANEL RECEPTACLE
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
DataSheet
Mfr
Molex
Series
73276
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
1000 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Base Product Number
073270
Contact Termination
Solder Cup
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Series | 73276 |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 1000 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Base Product Number | 073270 |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
