Step1: Product

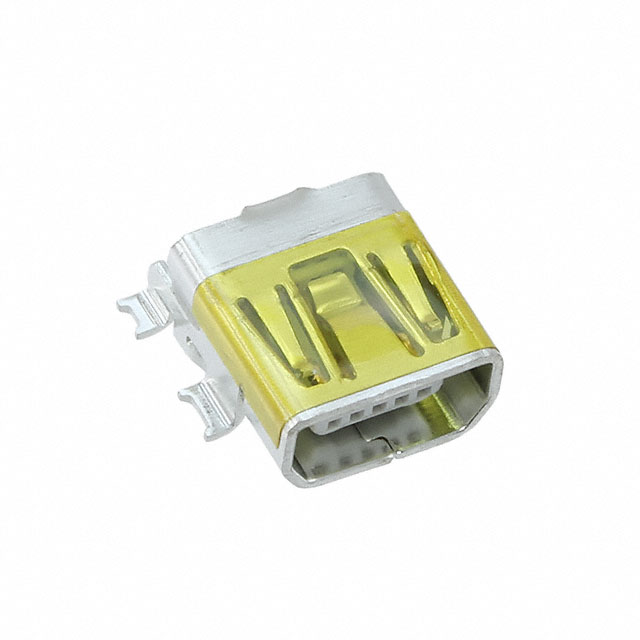

Molex 0678038020
Image shown is a representation only
Manufacturer
Manufacturer No
0678038020
Date Code
1732
Quantity
132
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT USB2.0 MINI AB SMD R/A
Detailed Description
USB - mini AB USB 2.0 OTG Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet
Gender
Receptacle
Series
67803
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Termination
Solder
Manufacturer
Molex
Mounting Type
Surface Mount, Right Angle
Connector Type
USB - mini AB
Contact Finish
Gold
Specifications
USB 2.0 OTG
Number of Ports
1
Voltage - Rated
30VAC/DC
Insulation Color
Gray
Mounting Feature
Horizontal
Number of Contacts
5
Base Product Number
067803
Current Rating (Amps)
1A
Operating Temperature
0°C ~ 50°C
Shell/Shielding Material
Copper Alloy
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | 67803 |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | Molex |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB - mini AB |
| Contact Finish | Gold |
| Specifications | USB 2.0 OTG |
| Number of Ports | 1 |
| Voltage - Rated | 30VAC/DC |
| Insulation Color | Gray |
| Mounting Feature | Horizontal |
| Number of Contacts | 5 |
| Base Product Number | 067803 |
| Current Rating (Amps) | 1A |
| Operating Temperature | 0°C ~ 50°C |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
