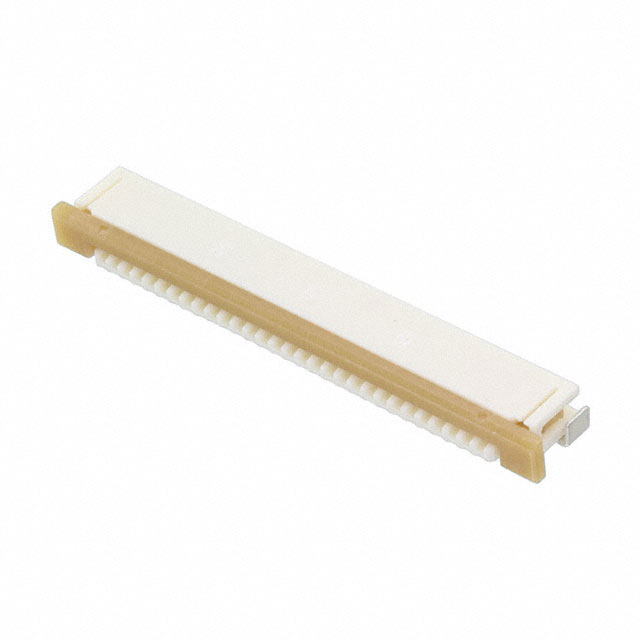

Molex 0522713069
Image shown is a representation only
Manufacturer
Manufacturer No
0522713069
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC BOTTOM 30POS 1MM R/A
Detailed Description
30 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
Pitch
0.039" (1.00mm)
Series
52271
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Molex
Mating Cycles
30
Mounting Type
Surface Mount, Right Angle
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA46), Nylon 4/6
Actuator Material
Polyphenylene Sulfide (PPS)
FFC, FCB Thickness
0.30mm
Height Above Board
0.118" (3.00mm)
Base Product Number
052271
Number of Positions
30
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | 52271 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.118" (3.00mm) |
| Base Product Number | 052271 |
| Number of Positions | 30 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
