Step1: Product

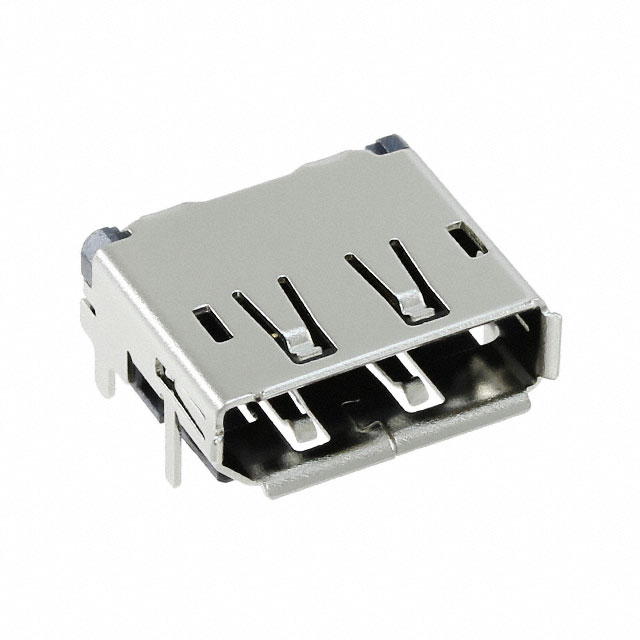

Molex 0472720011
Image shown is a representation only
Manufacturer
Manufacturer No
0472720011
Packaging
Tape & Reel (TR)
Description
CONN RCPT DISPLAYPORT 20P SMD RA
Detailed Description
DisplayPort Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Receptacle
Series
47272
Features
Board Guide, Latch Lock
Packaging
Tape & Reel (TR)
Shielding
Shielded
Part Status
Obsolete
Termination
Solder
Manufacturer
Molex
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
DisplayPort
Contact Finish
Gold
Number of Ports
1
Voltage - Rated
40VAC
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
20
Base Product Number
047272
Current Rating (Amps)
0.5A
Operating Temperature
-20°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | 47272 |
| Features | Board Guide, Latch Lock |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | Molex |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | DisplayPort |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Voltage - Rated | 40VAC |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 20 |
| Base Product Number | 047272 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -20°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
