Step1: Product

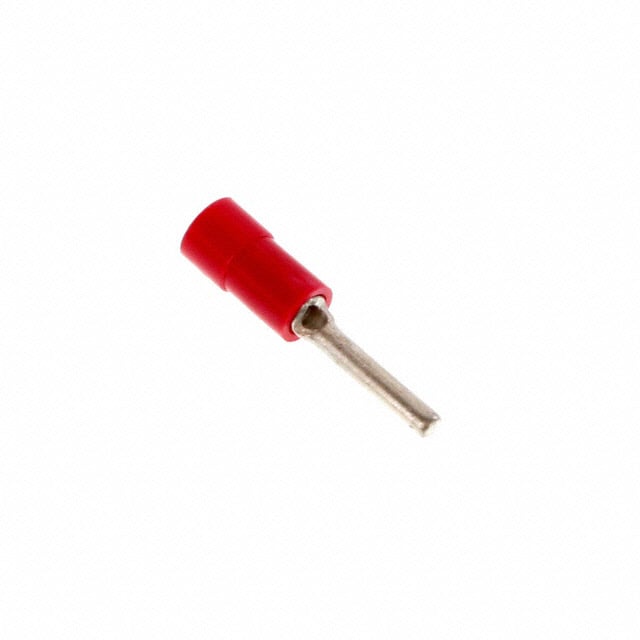

Molex 0192120004
Image shown is a representation only
Manufacturer
Manufacturer No
0192120004
Packaging
Tape & Reel (TR)
Description
CONN WIRE PIN TERM 18-22AWG
Detailed Description
Wire Pin Terminal Connector 18-22 AWG InsulKrimp Crimp
DataSheet
Color
Red
Series
InsulKrimp
Packaging
Tape & Reel (TR)
Insulation
Insulated
Wire Gauge
18-22 AWG
Part Status
Obsolete
Termination
Crimp
Length - Pin
0.390" (9.91mm)
Manufacturer
Molex
Pin Diameter
Circular - 0.078" (1.98mm) Dia
Contact Finish
Tin
Contact Material
Copper
Length - Overall
0.930" (23.62mm)
Base Product Number
019212
Insulation Diameter
0.145" (3.68mm)
Diameter - Barrel ID
0.055" (1.40mm)
Length - Termination
0.400" (10.16mm)
Material - Insulation
Poly-Vinyl Chloride (PVC)
| Attribute | Value |
|---|---|
| Color | Red |
| Series | InsulKrimp |
| Packaging | Tape & Reel (TR) |
| Insulation | Insulated |
| Wire Gauge | 18-22 AWG |
| Part Status | Obsolete |
| Termination | Crimp |
| Length - Pin | 0.390" (9.91mm) |
| Manufacturer | Molex |
| Pin Diameter | Circular - 0.078" (1.98mm) Dia |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 0.930" (23.62mm) |
| Base Product Number | 019212 |
| Insulation Diameter | 0.145" (3.68mm) |
| Diameter - Barrel ID | 0.055" (1.40mm) |
| Length - Termination | 0.400" (10.16mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
