Step1: Product
Molex 0191190007

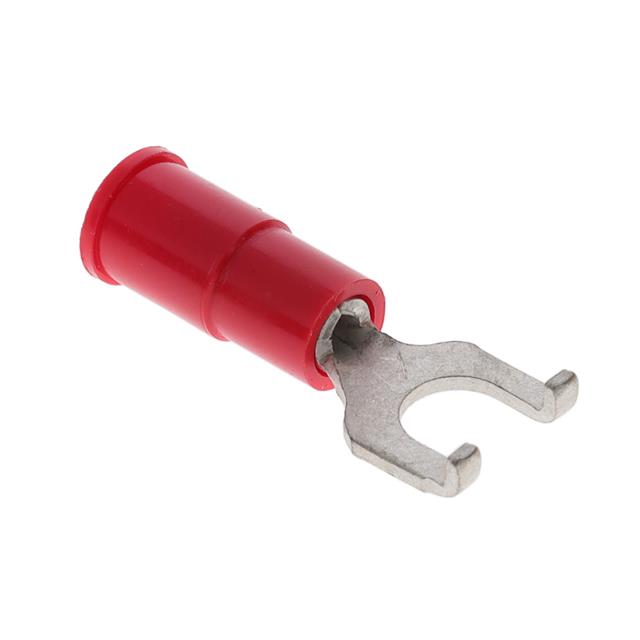

Image shown is a representation only
Manufacturer
Manufacturer No
0191190007
Packaging
Bag
Description
FLANGED SPADE INSULKRIMP (A-215-
Detailed Description
Red 8 Stud Spade Terminal Connector Crimp
DataSheet
Color
Red
Series
InsulKrimp
Packaging
Bag
Insulation
Insulated
Part Status
Active
Termination
Crimp
Manufacturer
Molex
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
8 Stud
Terminal Type
Flanged
Contact Finish
Electro-Tin
Contact Material
Copper
Length - Overall
0.836" (21.23mm)
Base Product Number
019119
Insulation Diameter
0.145" (3.68mm)
Width - Outer Edges
0.301" (7.65mm)
Length - Termination
0.450" (11.43mm)
Material - Insulation
Poly-Vinyl Chloride (PVC)
Tongue Inside Opening
0.173" (4.39mm)
Length - Ring Center to Termination
0.207" (5.26mm)
| Attribute | Value |
|---|---|
| Color | Red |
| Series | InsulKrimp |
| Packaging | Bag |
| Insulation | Insulated |
| Part Status | Active |
| Termination | Crimp |
| Manufacturer | Molex |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Flanged |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Length - Overall | 0.836" (21.23mm) |
| Base Product Number | 019119 |
| Insulation Diameter | 0.145" (3.68mm) |
| Width - Outer Edges | 0.301" (7.65mm) |
| Length - Termination | 0.450" (11.43mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Tongue Inside Opening | 0.173" (4.39mm) |
| Length - Ring Center to Termination | 0.207" (5.26mm) |
