Molex 0009482101

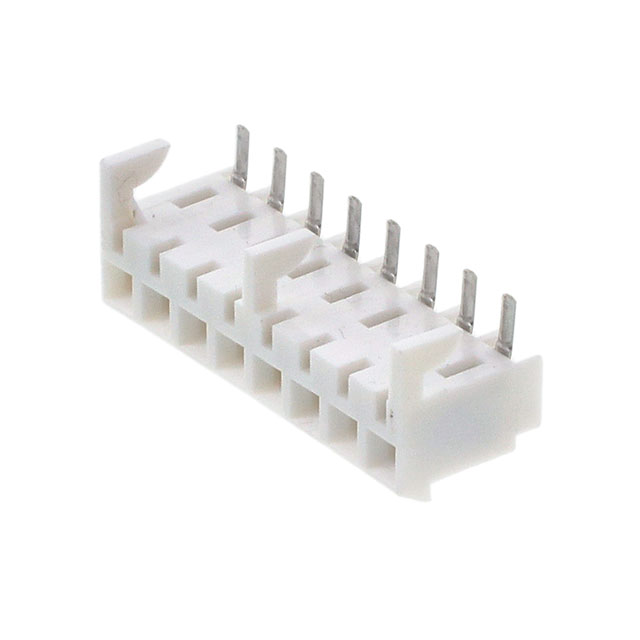

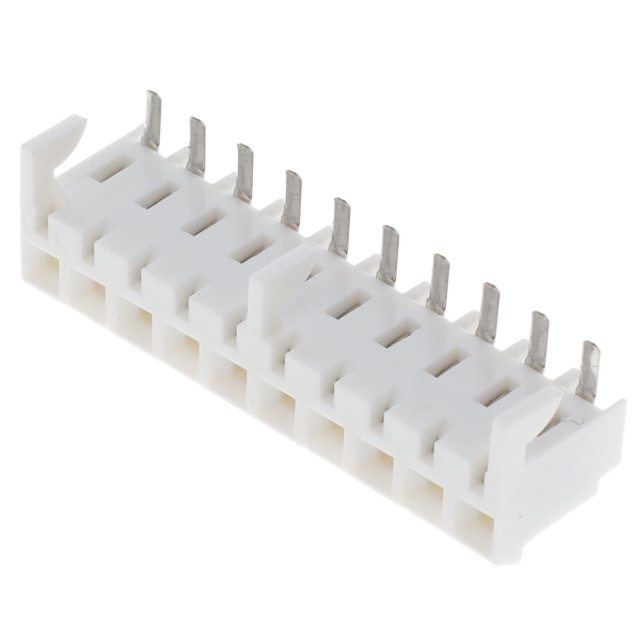

Image shown is a representation only
Manufacturer
Manufacturer No
0009482101
Packaging
Tray
Description
CONN RCPT 10P 0.156 TIN EDGE MNT
Detailed Description
10 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin
DataSheet
Mfr
Molex
Style
Board to Board or Cable
Series
KK396, 41815
Features
Board Hooks
Packaging
Tray
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.156" (3.96mm)
Voltage Rating
600V
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.308" (7.82mm)
Base Product Number
000948
Insulation Material
Polyester
Number of Positions
10
Contact Finish - Post
Tin
Contact Length - Post
0.145" (3.68mm)
Current Rating (Amps)
4.5A
Operating Temperature
-40°C ~ 80°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board or Cable |
| Series | KK396, 41815 |
| Features | Board Hooks |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.156" (3.96mm) |
| Voltage Rating | 600V |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.308" (7.82mm) |
| Base Product Number | 000948 |
| Insulation Material | Polyester |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.145" (3.68mm) |
| Current Rating (Amps) | 4.5A |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
