Step1: Product

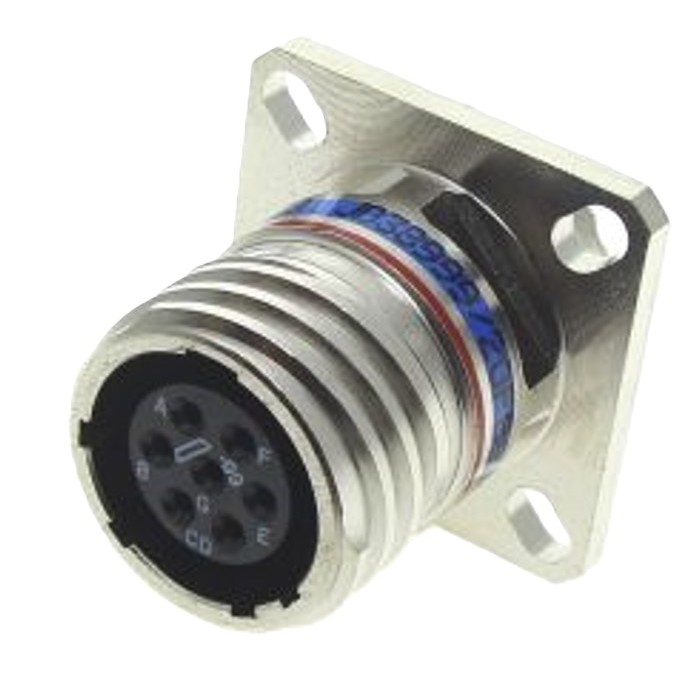

Milnec D38999/20SB99SE
Image shown is a representation only
Manufacturer
Manufacturer No
D38999/20SB99SE
Packaging
Bulk
Description
MIL SPEC RECEPTACLE
Detailed Description
7 Position Circular Connector Receptacle, Female Sockets Crimp
DataSheet
Mfr
Milnec
Color
Silver
Grade
Military
Series
MIL-DTL-38999 Series III
Packaging
Bulk
Shielding
Shielded
Orientation
E
Part Status
Active
Termination
Crimp
Applications
Aerospace, Aviation, Military
Shell Finish
Nickel
Mounting Type
Panel Mount
Qualification
MIL-DTL-38999 Series III
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Aluminum
Insert Material
Thermoplastic
Shell Size, MIL
B
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
7
Current Rating (Amps)
5A
Operating Temperature
-65°C ~ 150°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Milnec |
| Color | Silver |
| Grade | Military |
| Series | MIL-DTL-38999 Series III |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | E |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Aviation, Military |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-38999 Series III |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Aluminum |
| Insert Material | Thermoplastic |
| Shell Size, MIL | B |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 7 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -65°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
