Step1: Product

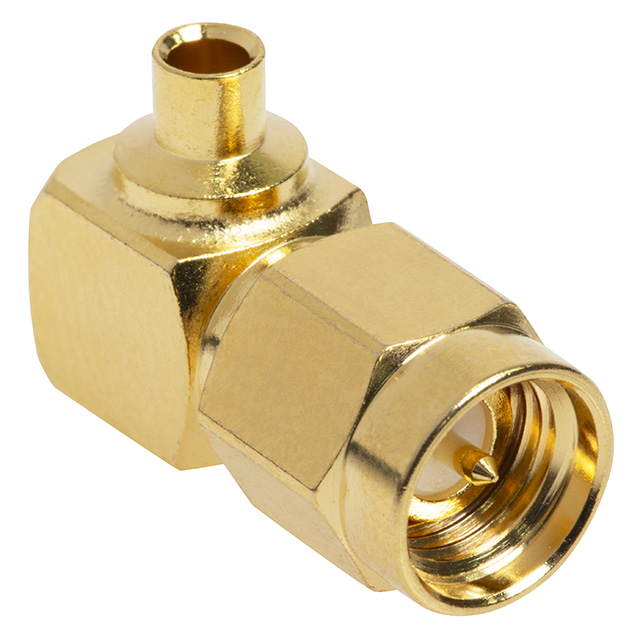

Millimeter Wave Technologies MWA-8001-G-086
Image shown is a representation only
Manufacturer
Manufacturer No
MWA-8001-G-086
Packaging
Bag
Description
SMA MALE RIGHT ANGLE SOLDER CABL
Detailed Description
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
DataSheet
Mfr
Millimeter Wave Technologies
Includes
3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Cable Group
RG-405 (.085", .086" Semi Rigid, .086" Conformable)
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Voltage Rating
375 V
Connector Style
SMA
Frequency - Max
18 GHz
Number of Ports
1
Ingress Protection
Weatherproof
Shield Termination
Crimp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Millimeter Wave Technologies |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Cable Group | RG-405 (.085", .086" Semi Rigid, .086" Conformable) |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Voltage Rating | 375 V |
| Connector Style | SMA |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Ingress Protection | Weatherproof |
| Shield Termination | Crimp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
