Step1: Product

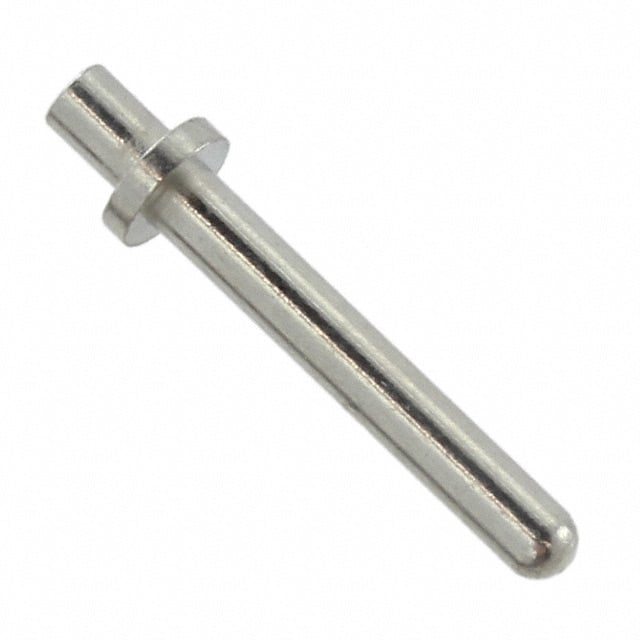

Mill-Max Manufacturing Corp. 9242-0-00-80-00-00-08-0
Image shown is a representation only
Manufacturer
Manufacturer No
9242-0-00-80-00-00-08-0
Packaging
Bulk
Description
CONN PC PIN CIRC .083 DIA TIN
Detailed Description
PC Pin Terminal Connector Through Hole Tin 0.083" (2.11mm) Dia
Datasheet
Series
9242
Packaging
Bulk
Insulation
Non-Insulated
Termination
Swage
Manufacturer
Mill-Max Manufacturing Corp.
Mounting Type
Through Hole
Terminal Type
PC Pin
Contact Finish
Tin
Terminal Style
Single End
Flange Diameter
0.125" (3.18mm)
Contact Material
Brass Alloy
Length - Overall
0.494" (12.55mm)
Base Product Number
9242-0
Length - Above Flange
0.375" (9.53mm)
Length - Below Flange
0.094" (2.39mm)
Mounting Hole Diameter
0.094" (2.39mm)
Pin Size - Above Flange
0.083" (2.11mm) Dia
Contact Finish Thickness
200.0µin (5.08µm)
| Attribute | Value |
|---|---|
| Series | 9242 |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Single End |
| Flange Diameter | 0.125" (3.18mm) |
| Contact Material | Brass Alloy |
| Length - Overall | 0.494" (12.55mm) |
| Base Product Number | 9242-0 |
| Length - Above Flange | 0.375" (9.53mm) |
| Length - Below Flange | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.094" (2.39mm) |
| Pin Size - Above Flange | 0.083" (2.11mm) Dia |
| Contact Finish Thickness | 200.0µin (5.08µm) |
