Step1: Product
Mill-Max Manufacturing Corp. 8885-0-00-21-00-00-03-0

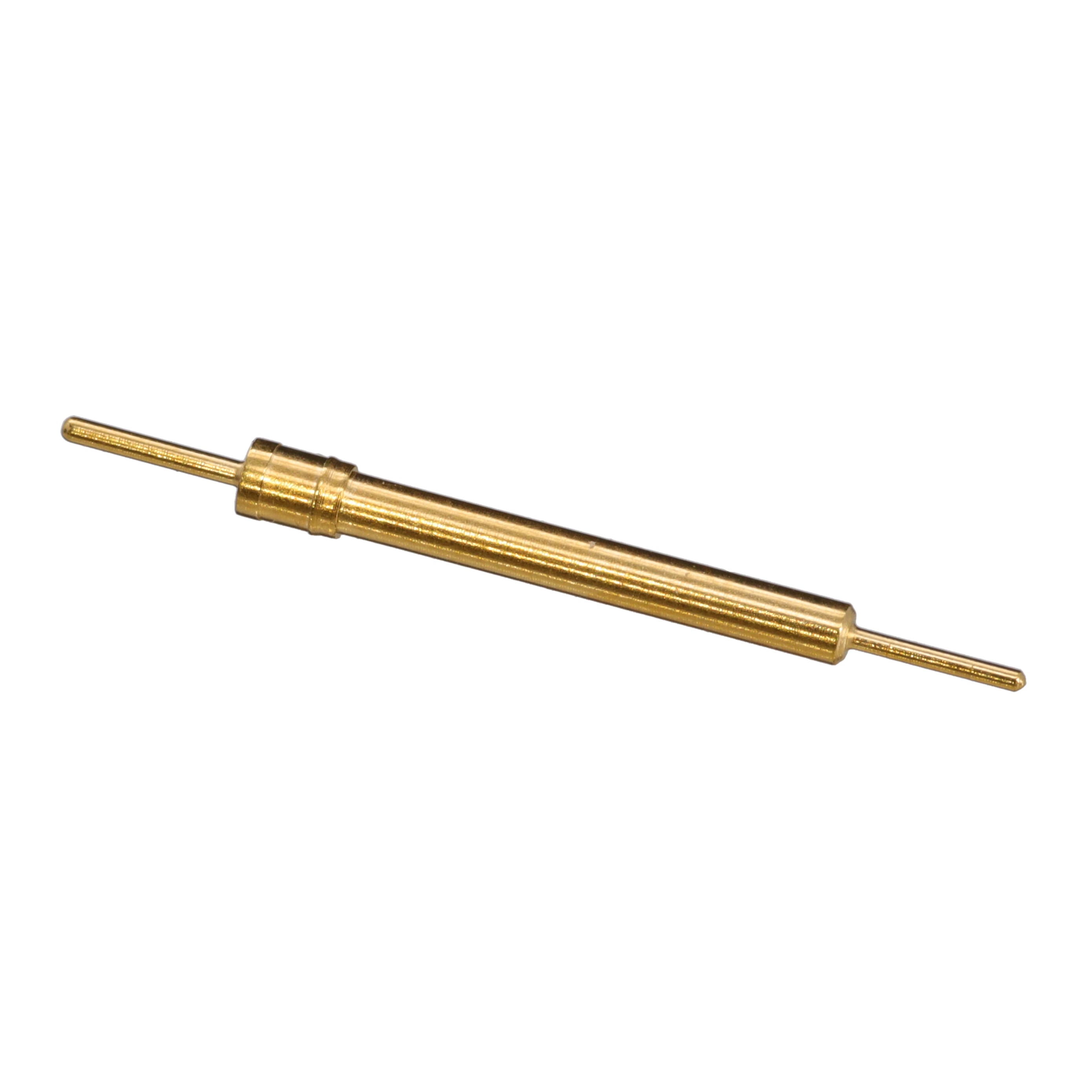

Image shown is a representation only
Manufacturer
Manufacturer No
8885-0-00-21-00-00-03-0
Packaging
Bulk
Description
CONN PC PIN
Detailed Description
PC Pin Terminal Connector Through Hole Gold 0.015" (0.38mm) Dia
DataSheet
Series
8885
Packaging
Bulk
Insulation
Non-Insulated
Part Status
Active
Termination
Press-Fit
Manufacturer
Mill-Max Manufacturing Corp.
Mounting Type
Through Hole
Terminal Type
PC Pin
Contact Finish
Gold
Terminal Style
Wire
Flange Diameter
0.057" (1.45mm)
Contact Material
Brass Alloy
Length - Overall
0.715" (18.16mm)
Base Product Number
8885-0
Length - Above Flange
0.557" (14.15mm)
Length - Below Flange
0.140" (3.56mm)
Mounting Hole Diameter
0.057" (1.45mm)
Pin Size - Above Flange
0.015" (0.38mm) Dia
Pin Size - Below Flange
0.018" (0.46mm) Dia
Contact Finish Thickness
20.0µin (0.51µm)
| Attribute | Value |
|---|---|
| Series | 8885 |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Gold |
| Terminal Style | Wire |
| Flange Diameter | 0.057" (1.45mm) |
| Contact Material | Brass Alloy |
| Length - Overall | 0.715" (18.16mm) |
| Base Product Number | 8885-0 |
| Length - Above Flange | 0.557" (14.15mm) |
| Length - Below Flange | 0.140" (3.56mm) |
| Mounting Hole Diameter | 0.057" (1.45mm) |
| Pin Size - Above Flange | 0.015" (0.38mm) Dia |
| Pin Size - Below Flange | 0.018" (0.46mm) Dia |
| Contact Finish Thickness | 20.0µin (0.51µm) |
