Step1: Product

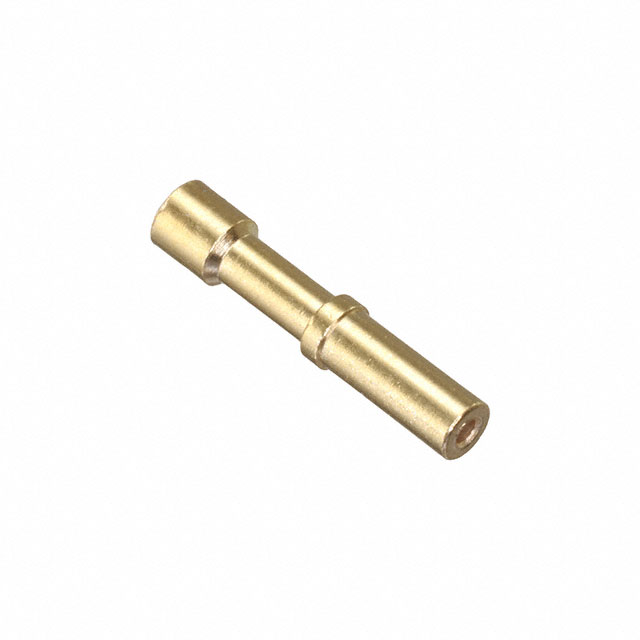

Mill-Max Manufacturing Corp. 5448-0-33-15-16-27-10-0
Image shown is a representation only
Manufacturer
Manufacturer No
5448-0-33-15-16-27-10-0
Packaging
Bulk
Description
WIRE TERMINATION RECEPTACLE - CR
Detailed Description
Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Crimp
DataSheet
Series
5448
Packaging
Bulk
Tail Type
No Tail
Part Status
Active
Termination
Crimp
Manufacturer
Mill-Max Manufacturing Corp.
Socket Depth
0.200" (5.08mm)
Contact Finish
Gold
Flange Diameter
0.102" (2.59mm)
Contact Material
Beryllium Copper
Length - Overall
0.530" (13.46mm)
Pin Hole Diameter
0.051" (1.30mm)
Base Product Number
5448-0
Accepts Pin Diameter
0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Operating Temperature
-55°C ~ 125°C
Accepts Square Pin Size
0.025" (0.64mm)
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | 5448 |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Crimp |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Socket Depth | 0.200" (5.08mm) |
| Contact Finish | Gold |
| Flange Diameter | 0.102" (2.59mm) |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.530" (13.46mm) |
| Pin Hole Diameter | 0.051" (1.30mm) |
| Base Product Number | 5448-0 |
| Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
| Operating Temperature | -55°C ~ 125°C |
| Accepts Square Pin Size | 0.025" (0.64mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
