Step1: Product

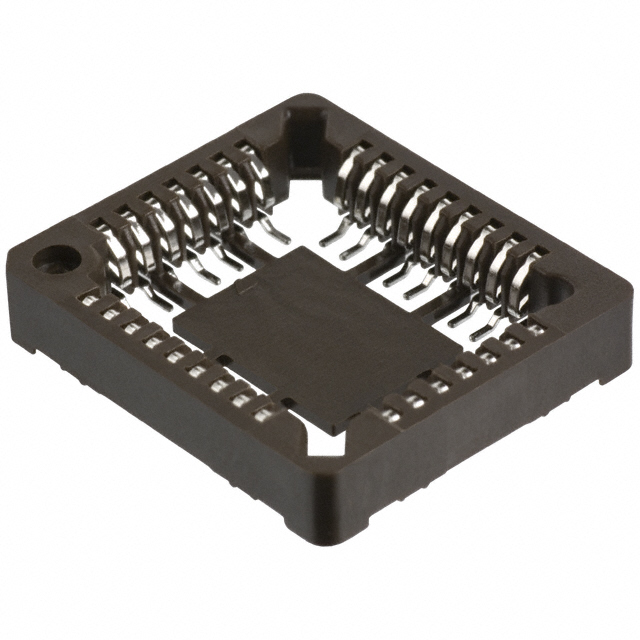

Mill-Max Manufacturing Corp. 540-44-032-17-400000
Image shown is a representation only
Manufacturer
Manufacturer No
540-44-032-17-400000
Date Code
18+
Quantity
44
Availability
In Stock
Packaging
Tube
Description
CONN SOCKET PLCC 32POS TIN
Detailed Description
32 (2 x 7, 2 x 9) Pos PLCC Socket Tin Surface Mount
Datasheet
Type
PLCC
Series
540
Features
Closed Frame
Packaging
Tube
Termination
Solder
Manufacturer
Mill-Max Manufacturing Corp.
Pitch - Post
0.100" (2.54mm)
Mounting Type
Surface Mount
Pitch - Mating
0.050" (1.27mm)
Housing Material
Polyphenylene Sulfide (PPS)
Contact Resistance
20mOhm
Base Product Number
540-44
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Tin
Contact Material - Post
Copper Alloy
Contact Material - Mating
Copper Alloy
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Number of Positions or Pins (Grid)
32 (2 x 7, 2 x 9)
| Attribute | Value |
|---|---|
| Type | PLCC |
| Series | 540 |
| Features | Closed Frame |
| Packaging | Tube |
| Termination | Solder |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Contact Resistance | 20mOhm |
| Base Product Number | 540-44 |
| Contact Finish - Post | Tin |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Copper Alloy |
| Contact Material - Mating | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
