Step1: Product

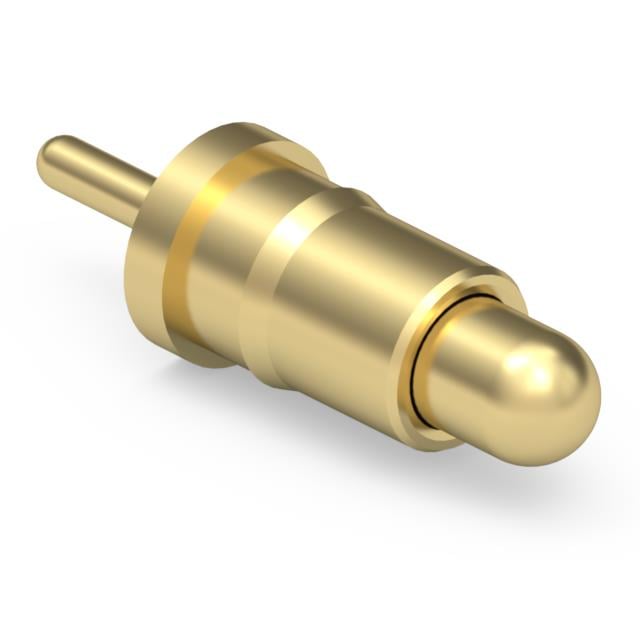

Mill-Max Manufacturing Corp. 0906-8-15-20-76-14-11-0
Image shown is a representation only
Manufacturer
Manufacturer No
0906-8-15-20-76-14-11-0
Packaging
Bulk
Description
CONTACT SPRING LOADED T/H GOLD
Detailed Description
Contact Spring Through Hole
DataSheet
Series
906
Packaging
Bulk
Part Status
Active
Contact Type
Sleeve & Plunger (Pogo Pins)
Manufacturer
Mill-Max Manufacturing Corp.
Plunger Size
0.042" (1.07mm) Dia
Mating Cycles
1000000
Mounting Type
Through Hole
Contact Finish
Gold
Contact Material
Brass Alloy
Base Product Number
0906-8
Pad Layout Dimension
Circular - 0.072" (1.83mm) (TH)
Current Rating (Amps)
2A
Operating Temperature
-55°C ~ 125°C
Maximum Working Height
0.155" (3.94mm)
Minimum Working Height
0.100" (2.54mm)
Contact Finish Thickness
20.0µin (0.51µm)
Operating Force - Initial
15gf
Recommended Working Height
0.128" (3.24mm)
Operating Force - Mid Compression
60gf
| Attribute | Value |
|---|---|
| Series | 906 |
| Packaging | Bulk |
| Part Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Plunger Size | 0.042" (1.07mm) Dia |
| Mating Cycles | 1000000 |
| Mounting Type | Through Hole |
| Contact Finish | Gold |
| Contact Material | Brass Alloy |
| Base Product Number | 0906-8 |
| Pad Layout Dimension | Circular - 0.072" (1.83mm) (TH) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -55°C ~ 125°C |
| Maximum Working Height | 0.155" (3.94mm) |
| Minimum Working Height | 0.100" (2.54mm) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Operating Force - Initial | 15gf |
| Recommended Working Height | 0.128" (3.24mm) |
| Operating Force - Mid Compression | 60gf |
