Step1: Product

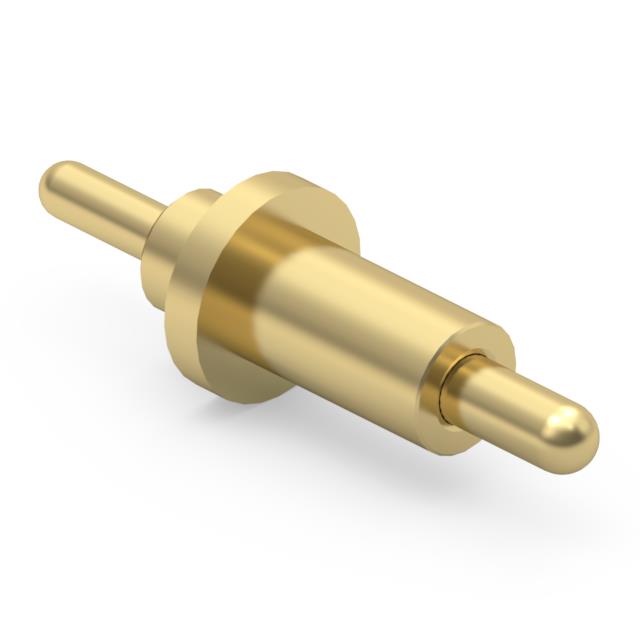

Mill-Max Manufacturing Corp. 0856-0-15-20-82-14-11-0
Image shown is a representation only
Manufacturer
Manufacturer No
0856-0-15-20-82-14-11-0
Packaging
Bulk
Description
CONTACT SPRING LOADED T/H GOLD
Detailed Description
Contact Spring Through Hole
DataSheet
Series
856
Packaging
Bulk
Part Status
Active
Contact Type
Sleeve & Plunger (Pogo Pins)
Manufacturer
Mill-Max Manufacturing Corp.
Plunger Size
0.050" (1.27mm) Dia
Mating Cycles
1000000
Mounting Type
Through Hole
Contact Finish
Gold
Contact Material
Brass Alloy
Base Product Number
0856-0
Pad Layout Dimension
Circular - 0.153" (3.89mm) (TH)
Current Rating (Amps)
9.6A
Operating Temperature
-55°C ~ 125°C
Maximum Working Height
0.318" (8.08mm)
Minimum Working Height
0.288" (7.32mm)
Contact Finish Thickness
20.0µin (0.51µm)
Operating Force - Initial
25gf
Recommended Working Height
0.333" (8.46mm)
Operating Force - Mid Compression
120gf
| Attribute | Value |
|---|---|
| Series | 856 |
| Packaging | Bulk |
| Part Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Plunger Size | 0.050" (1.27mm) Dia |
| Mating Cycles | 1000000 |
| Mounting Type | Through Hole |
| Contact Finish | Gold |
| Contact Material | Brass Alloy |
| Base Product Number | 0856-0 |
| Pad Layout Dimension | Circular - 0.153" (3.89mm) (TH) |
| Current Rating (Amps) | 9.6A |
| Operating Temperature | -55°C ~ 125°C |
| Maximum Working Height | 0.318" (8.08mm) |
| Minimum Working Height | 0.288" (7.32mm) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Operating Force - Initial | 25gf |
| Recommended Working Height | 0.333" (8.46mm) |
| Operating Force - Mid Compression | 120gf |
