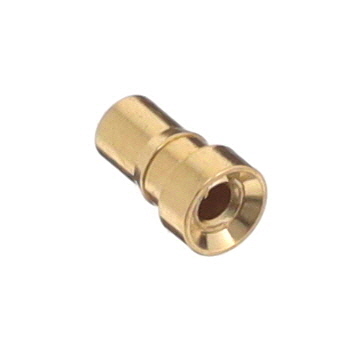

Mill-Max Manufacturing Corp. 0697-0-15-15-30-14-10-0
Image shown is a representation only
Manufacturer
Manufacturer No
0697-0-15-15-30-14-10-0
Packaging
Bulk
Description
CONN PIN RCPT
Detailed Description
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Press-Fit
DataSheet
Series
0697
Packaging
Bulk
Tail Type
No Tail
Part Status
Active
Termination
Press-Fit
Manufacturer
Mill-Max Manufacturing Corp.
Socket Depth
0.106" (2.69mm)
Contact Finish
Gold
Flange Diameter
0.072" (1.83mm)
Contact Material
Beryllium Copper
Length - Overall
0.126" (3.20mm)
Pin Hole Diameter
0.043" (1.09mm)
Base Product Number
0697-0
Accepts Pin Diameter
0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Operating Temperature
-55°C ~ 125°C
Mounting Hole Diameter
0.057" (1.45mm)
Contact Finish Thickness
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Series | 0697 |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Socket Depth | 0.106" (2.69mm) |
| Contact Finish | Gold |
| Flange Diameter | 0.072" (1.83mm) |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.126" (3.20mm) |
| Pin Hole Diameter | 0.043" (1.09mm) |
| Base Product Number | 0697-0 |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.057" (1.45mm) |
| Contact Finish Thickness | 10.0µin (0.25µm) |
