Step1: Product
Mill-Max Manufacturing Corp. 0393-0-15-80-07-27-10-0

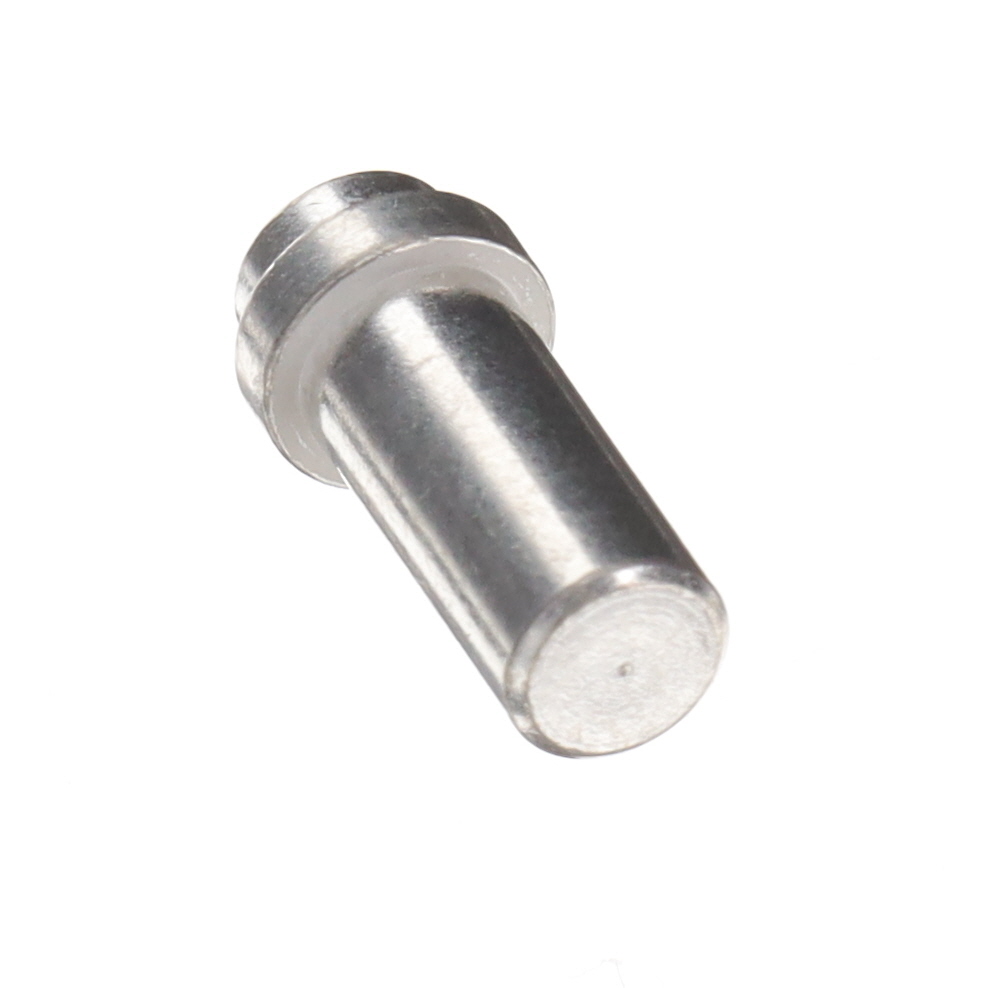

Image shown is a representation only
Manufacturer
Manufacturer No
0393-0-15-80-07-27-10-0
Packaging
Bulk
Description
CONN PIN RCPT
Detailed Description
Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Solder
Datasheet
Series
0393
Packaging
Bulk
Tail Type
No Tail
Termination
Solder
Manufacturer
Mill-Max Manufacturing Corp.
Socket Depth
0.340" (8.64mm)
Contact Finish
Gold
Flange Diameter
0.187" (4.75mm)
Contact Material
Beryllium Copper
Length - Overall
0.412" (10.46mm)
Pin Hole Diameter
0.107" (2.72mm)
Base Product Number
0393-0
Accepts Pin Diameter
0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Operating Temperature
-55°C ~ 125°C
Mounting Hole Diameter
0.144" (3.66mm)
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | 0393 |
| Packaging | Bulk |
| Tail Type | No Tail |
| Termination | Solder |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Socket Depth | 0.340" (8.64mm) |
| Contact Finish | Gold |
| Flange Diameter | 0.187" (4.75mm) |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.412" (10.46mm) |
| Pin Hole Diameter | 0.107" (2.72mm) |
| Base Product Number | 0393-0 |
| Accepts Pin Diameter | 0.065" ~ 0.082" (1.65mm ~ 2.08mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.144" (3.66mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
