Step1: Product

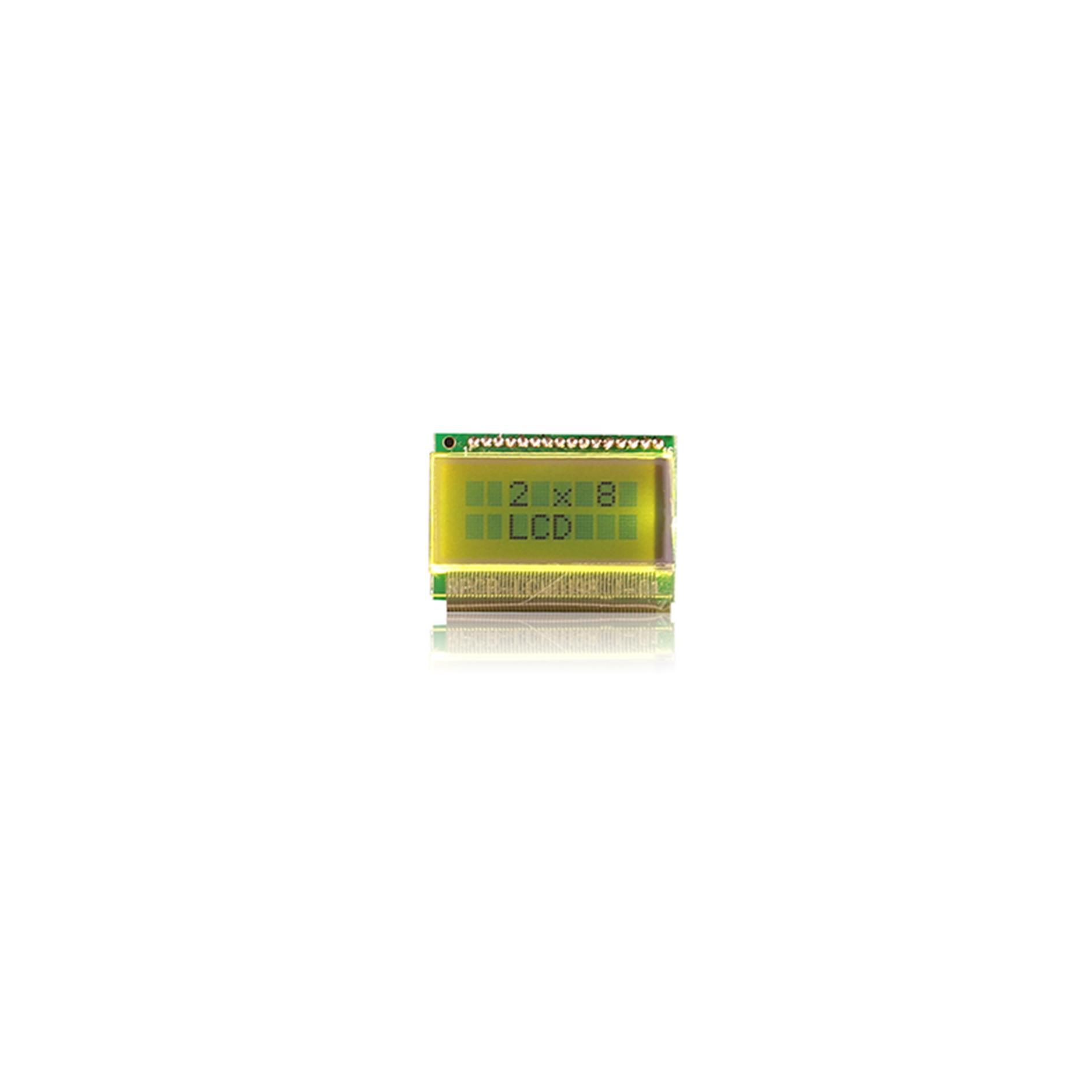

Midas Displays MC20803A6W-GPTLY
Image shown is a representation only
Manufacturer
Manufacturer No
MC20803A6W-GPTLY
Packaging
Tray
Description
2X8 CHARACTER CHIP-ON-GLASS LCD,
Detailed Description
Character Display Module Transflective 5 x 7 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 25.00mm x 17.50mm x 6.30mm
Datasheet
Series
MC20803A
Dot Size
0.35mm W x 0.35mm H
Backlight
LED - Yellow/Green
Interface
Parallel
Packaging
Tray
Text Color
Black
Display Mode
Transflective
Display Type
STN - Super-Twisted Nematic
Manufacturer
Midas Displays
Viewing Area
21.00mm L x 9.00mm W
Character Size
2.60mm H x 1.85mm W
Display Format
2 x 8
Controller Type
ST7066U
Background Color
Yellow/Green
Character Format
5 x 7 Dots
Voltage - Supply
4.5V ~ 5.5V
Outline L x W x H
25.00mm x 17.50mm x 6.30mm
Number of Characters
1.0
Operating Temperature
0°C ~ 50°C
| Attribute | Value |
|---|---|
| Series | MC20803A |
| Dot Size | 0.35mm W x 0.35mm H |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Packaging | Tray |
| Text Color | Black |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Manufacturer | Midas Displays |
| Viewing Area | 21.00mm L x 9.00mm W |
| Character Size | 2.60mm H x 1.85mm W |
| Display Format | 2 x 8 |
| Controller Type | ST7066U |
| Background Color | Yellow/Green |
| Character Format | 5 x 7 Dots |
| Voltage - Supply | 4.5V ~ 5.5V |
| Outline L x W x H | 25.00mm x 17.50mm x 6.30mm |
| Number of Characters | 1.0 |
| Operating Temperature | 0°C ~ 50°C |
