Step1: Product
Microsemi Corporation MXLP5KE20CAE3

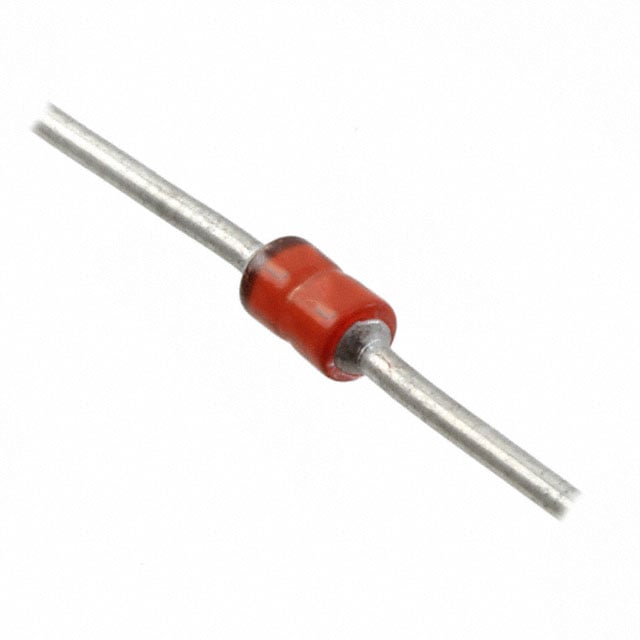

Image shown is a representation only
Manufacturer
Manufacturer No
MXLP5KE20CAE3
Package
DO-204AL, DO-41, Axial
Packaging
Bulk
Description
TVS DIODE 20VWM 32.4VC DO204AL
Detailed Description
32.4V Clamp 15.4A Ipp Tvs Diode Through Hole DO-204AL (DO-41)
DataSheet
Mfr
Microsemi Corporation
Type
Zener
Grade
Military
Packaging
Bulk
Part Status
Obsolete
Applications
General Purpose
Mounting Type
Through Hole
Qualification
MIL-PRF-19500
Package / Case
DO-204AL, DO-41, Axial
Power - Peak Pulse
500W
Base Product Number
MXLP5KE20
Operating Temperature
-65°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Supplier Device Package
DO-204AL (DO-41)
Voltage - Breakdown (Min)
22.2V
Voltage - Clamping (Max) @ Ipp
32.4V
Voltage - Reverse Standoff (Typ)
20V
Current - Peak Pulse (10/1000µs)
15.4A
| Attribute | Value |
|---|---|
| Mfr | Microsemi Corporation |
| Type | Zener |
| Grade | Military |
| Packaging | Bulk |
| Part Status | Obsolete |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Qualification | MIL-PRF-19500 |
| Package / Case | DO-204AL, DO-41, Axial |
| Power - Peak Pulse | 500W |
| Base Product Number | MXLP5KE20 |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Supplier Device Package | DO-204AL (DO-41) |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 32.4V |
| Voltage - Reverse Standoff (Typ) | 20V |
| Current - Peak Pulse (10/1000µs) | 15.4A |
