Step1: Product
Microsemi Corporation MRF904

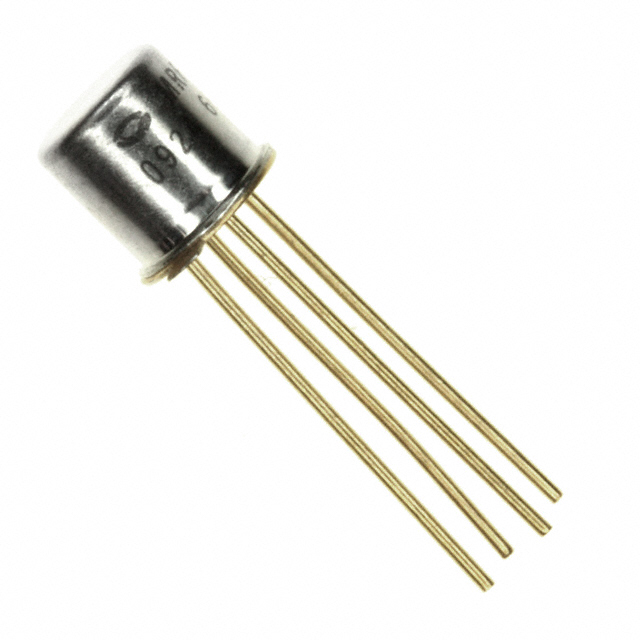

Image shown is a representation only
Manufacturer
Manufacturer No
MRF904
Package
TO-206AF, TO-72-4 Metal Can
Packaging
Bulk
Description
RF TRANS NPN 15V 4GHZ TO-72
Detailed Description
RF Transistor NPN 15V 30mA 4GHz 200mW Through Hole TO-72
Gain
6.5dB ~ 10.5dB
Packaging
Bulk
Part Status
Obsolete
Power - Max
200mW
Manufacturer
Microsemi Corporation
Mounting Type
Through Hole
Package / Case
TO-206AF, TO-72-4 Metal Can
Transistor Type
NPN
Operating Temperature
200°C (TJ)
Frequency - Transition
4GHz
Supplier Device Package
TO-72
Noise Figure (dB Typ @ f)
1.5dB @ 450MHz
Current - Collector (Ic) (Max)
30mA
DC Current Gain (hFE) (Min) @ Ic, Vce
30 @ 5mA, 5V
Voltage - Collector Emitter Breakdown (Max)
15V
| Attribute | Value |
|---|---|
| Gain | 6.5dB ~ 10.5dB |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 200mW |
| Manufacturer | Microsemi Corporation |
| Mounting Type | Through Hole |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Transistor Type | NPN |
| Operating Temperature | 200°C (TJ) |
| Frequency - Transition | 4GHz |
| Supplier Device Package | TO-72 |
| Noise Figure (dB Typ @ f) | 1.5dB @ 450MHz |
| Current - Collector (Ic) (Max) | 30mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
