Step1: Product

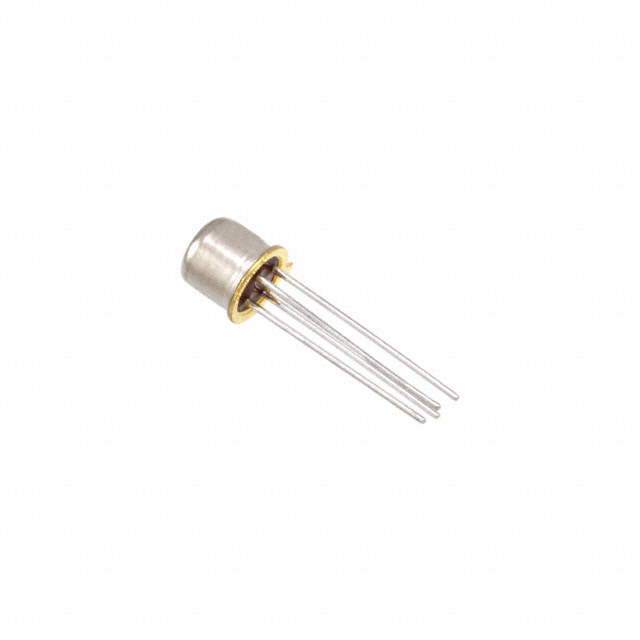

Microsemi Corporation JANTX2N2857
Image shown is a representation only
Manufacturer
Manufacturer No
JANTX2N2857
Package
TO-72-3 Metal Can
Packaging
Bulk
Description
RF TRANS NPN 15V 500MHZ TO-72
Detailed Description
RF Transistor NPN 15V 40mA 500MHz 200mW Through Hole TO-72
DataSheet
Gain
12.5dB ~ 21dB @ 450MHz
Grade
Military
Packaging
Bulk
Part Status
Obsolete
Power - Max
200mW
Manufacturer
Microsemi Corporation
Mounting Type
Through Hole
Qualification
MIL-PRF-19500/343
Package / Case
TO-72-3 Metal Can
Transistor Type
NPN
Operating Temperature
-65°C ~ 200°C (TJ)
Frequency - Transition
500MHz
Supplier Device Package
TO-72
Noise Figure (dB Typ @ f)
4.5dB @ 450MHz
Current - Collector (Ic) (Max)
40mA
DC Current Gain (hFE) (Min) @ Ic, Vce
30 @ 3mA, 1V
Voltage - Collector Emitter Breakdown (Max)
15V
| Attribute | Value |
|---|---|
| Gain | 12.5dB ~ 21dB @ 450MHz |
| Grade | Military |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 200mW |
| Manufacturer | Microsemi Corporation |
| Mounting Type | Through Hole |
| Qualification | MIL-PRF-19500/343 |
| Package / Case | TO-72-3 Metal Can |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Frequency - Transition | 500MHz |
| Supplier Device Package | TO-72 |
| Noise Figure (dB Typ @ f) | 4.5dB @ 450MHz |
| Current - Collector (Ic) (Max) | 40mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 3mA, 1V |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
