Step1: Product

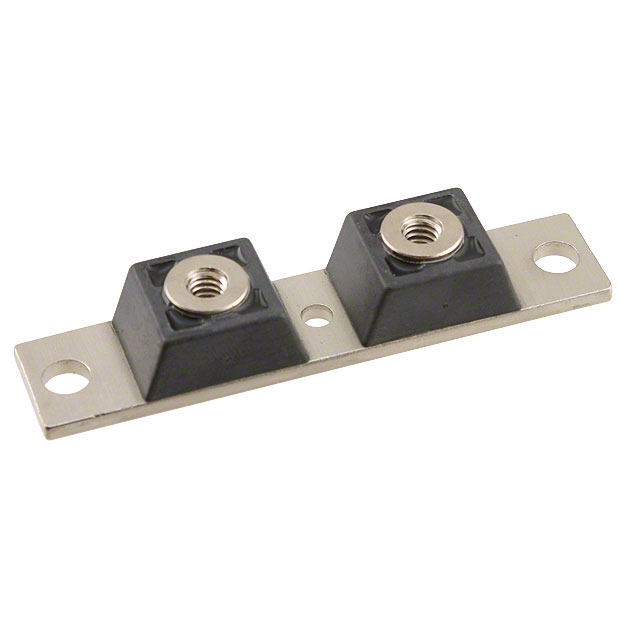

Microsemi Corporation CPT60145
Image shown is a representation only
Manufacturer
Manufacturer No
CPT60145
Package
MD3CC
Packaging
Bulk
Description
DIODE MOD SCHOTT 45V 300A 2TOWER
Detailed Description
Diode Array 1 Pair Common Cathode 45 V 300A Chassis Mount MD3CC
DataSheet
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Bulk
Technology
Schottky
Part Status
Obsolete
Manufacturer
Microsemi Corporation
Mounting Type
Chassis Mount
Package / Case
MD3CC
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
Twin Tower
Current - Reverse Leakage @ Vr
21 mA @ 45 V
Voltage - DC Reverse (Vr) (Max)
45 V
Voltage - Forward (Vf) (Max) @ If
550 mV @ 300 A
Current - Average Rectified (Io) (per Diode)
300A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Schottky |
| Part Status | Obsolete |
| Manufacturer | Microsemi Corporation |
| Mounting Type | Chassis Mount |
| Package / Case | MD3CC |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | Twin Tower |
| Current - Reverse Leakage @ Vr | 21 mA @ 45 V |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 300 A |
| Current - Average Rectified (Io) (per Diode) | 300A |
