Microchip Technology TP2104K1-G

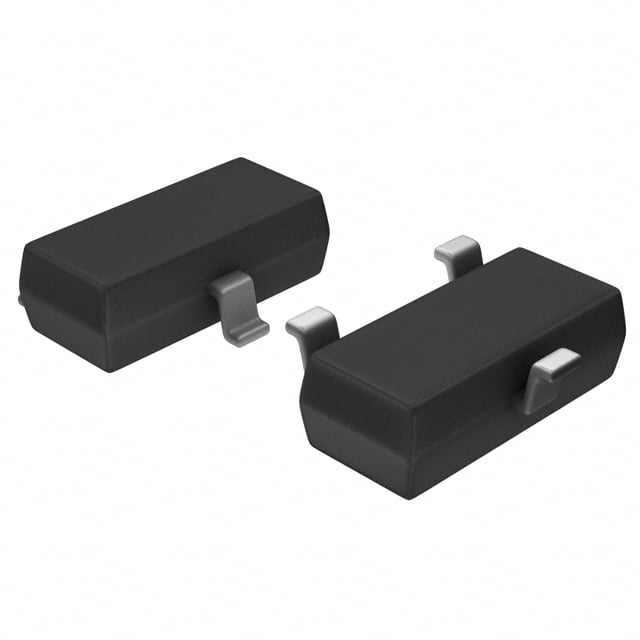

Image shown is a representation only
Manufacturer
Manufacturer No
TP2104K1-G
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET P-CH 40V 160MA TO236AB
Detailed Description
P-Channel 40 V 160mA (Tj) 360mW (Ta) Surface Mount TO-236AB (SOT23)
DataSheet
Mfr
Microchip Technology
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Vgs(th) (Max) @ Id
2V @ 1mA
Base Product Number
TP2104
Operating Temperature
-55°C ~ 150°C
Rds On (Max) @ Id, Vgs
6Ohm @ 500mA, 10V
Power Dissipation (Max)
360mW (Ta)
Supplier Device Package
TO-236AB (SOT23)
Drain to Source Voltage (Vdss)
40 V
Input Capacitance (Ciss) (Max) @ Vds
60 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
160mA (Tj)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Base Product Number | TP2104 |
| Operating Temperature | -55°C ~ 150°C |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 500mA, 10V |
| Power Dissipation (Max) | 360mW (Ta) |
| Supplier Device Package | TO-236AB (SOT23) |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 160mA (Tj) |
