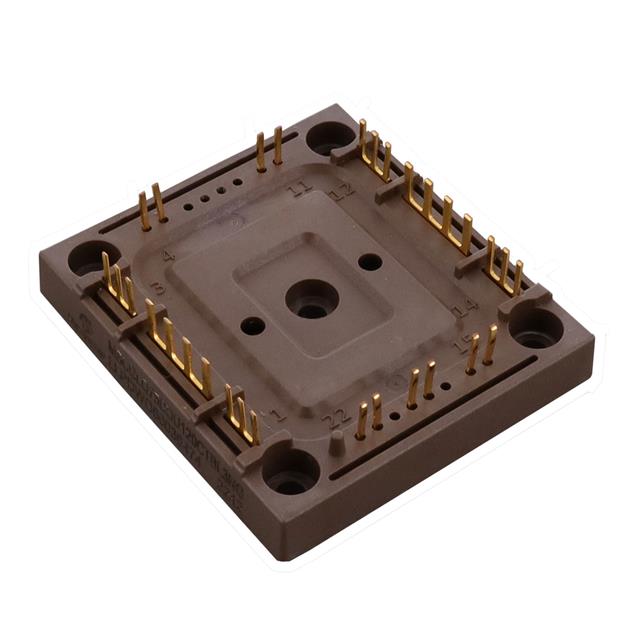

Microchip Technology MSCGLQ75DDU120CTBL3NG
Image shown is a representation only
Manufacturer
Manufacturer No
MSCGLQ75DDU120CTBL3NG
Package
Module
Packaging
Bulk
Description
IGBT MODULE 1200V 160A 470W
Detailed Description
IGBT Module Full Bridge 1200 V 160 A 470 W Chassis Mount
DataSheet
Input
Standard
Packaging
Bulk
Part Status
Active
Power - Max
470 W
Manufacturer
Microchip Technology
Configuration
Full Bridge
Mounting Type
Chassis Mount
NTC Thermistor
Yes
Package / Case
Module
Base Product Number
MSCGLQ
Operating Temperature
-55°C ~ 175°C (TJ)
Vce(on) (Max) @ Vge, Ic
2.4V @ 15V, 75A
Current - Collector (Ic) (Max)
160 A
Input Capacitance (Cies) @ Vce
4.4 nF @ 25 V
Current - Collector Cutoff (Max)
50 µA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Standard |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 470 W |
| Manufacturer | Microchip Technology |
| Configuration | Full Bridge |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Base Product Number | MSCGLQ |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 75A |
| Current - Collector (Ic) (Max) | 160 A |
| Input Capacitance (Cies) @ Vce | 4.4 nF @ 25 V |
| Current - Collector Cutoff (Max) | 50 µA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
