Step1: Product

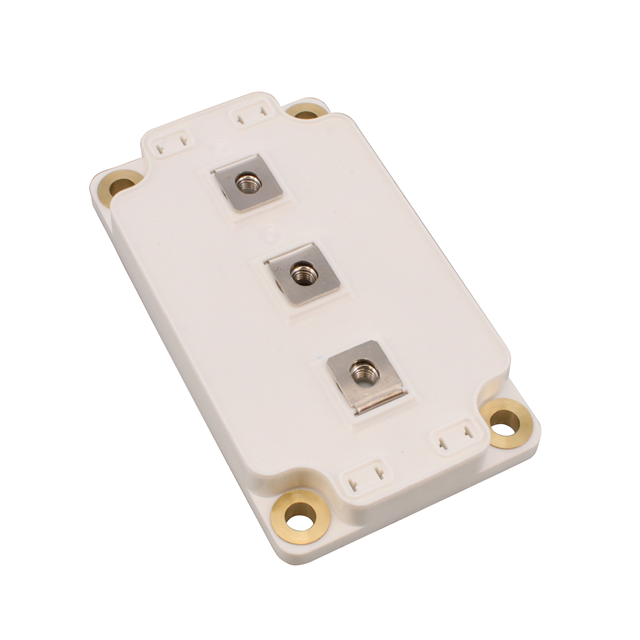

Microchip Technology MSCDC600A70AG
Image shown is a representation only
Manufacturer
Manufacturer No
MSCDC600A70AG
Package
Module
Packaging
Tube
Description
DIODE MODULE SIC 700V 600A SP6
Detailed Description
Diode Array 1 Pair Series Connection 700 V 600A Chassis Mount Module
DataSheet
Speed
No Recovery Time > 500mA (Io)
Packaging
Tube
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Manufacturer
Microchip Technology
Mounting Type
Chassis Mount
Package / Case
Module
Base Product Number
MSCDC600
Diode Configuration
1 Pair Series Connection
Supplier Device Package
SP6
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
2.4 mA @ 700 V
Voltage - DC Reverse (Vr) (Max)
700 V
Operating Temperature - Junction
-40°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.8 V @ 600 A
Current - Average Rectified (Io) (per Diode)
600A
| Attribute | Value |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Packaging | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Manufacturer | Microchip Technology |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Base Product Number | MSCDC600 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | SP6 |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 2.4 mA @ 700 V |
| Voltage - DC Reverse (Vr) (Max) | 700 V |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 600 A |
| Current - Average Rectified (Io) (per Diode) | 600A |
