Step1: Product
Microchip Technology MICRF505YML-TR

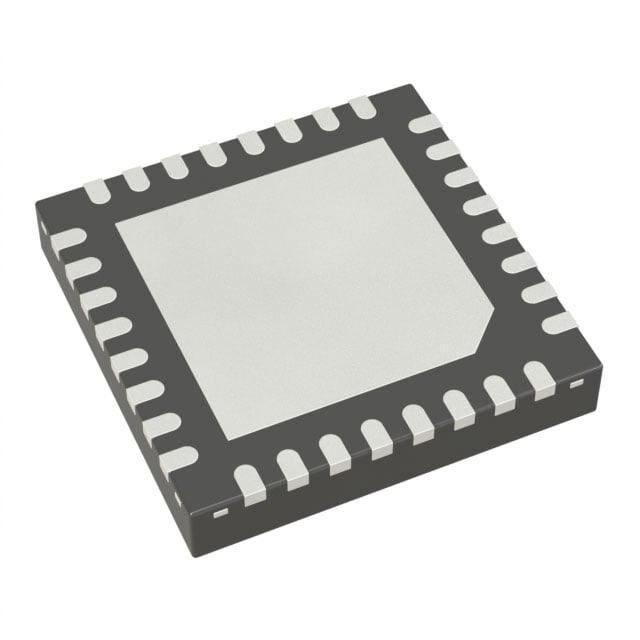

Image shown is a representation only
Manufacturer
Manufacturer No
MICRF505YML-TR
Date Code
1614
Quantity
56
Availability
In Stock
Package
32-VFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC RF TXRX ISM<1GHZ 32QFN
Detailed Description
IC RF TxRx Only General ISM < 1GHz 850MHz ~ 950MHz 32-VFQFN Exposed Pad
Datasheet
Mfr
Microchip Technology
Type
TxRx Only
Frequency
850MHz ~ 950MHz
Packaging
Tape & Reel (TR)
Modulation
FSK
Sensitivity
-111dBm
Mounting Type
Surface Mount
Package / Case
32-VFQFN Exposed Pad
Power - Output
10dBm
Data Rate (Max)
200kbps
Voltage - Supply
2V ~ 2.5V
Serial Interfaces
SPI
RF Family/Standard
General ISM < 1GHz
Base Product Number
MICRF505
Current - Receiving
8.6mA ~ 13.5mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
14mA ~ 28mA
Supplier Device Package
32-QFN (5x5)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Type | TxRx Only |
| Frequency | 850MHz ~ 950MHz |
| Packaging | Tape & Reel (TR) |
| Modulation | FSK |
| Sensitivity | -111dBm |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Power - Output | 10dBm |
| Data Rate (Max) | 200kbps |
| Voltage - Supply | 2V ~ 2.5V |
| Serial Interfaces | SPI |
| RF Family/Standard | General ISM < 1GHz |
| Base Product Number | MICRF505 |
| Current - Receiving | 8.6mA ~ 13.5mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 14mA ~ 28mA |
| Supplier Device Package | 32-QFN (5x5) |
