Step1: Product
Microchip Technology JANTX1N3595-1

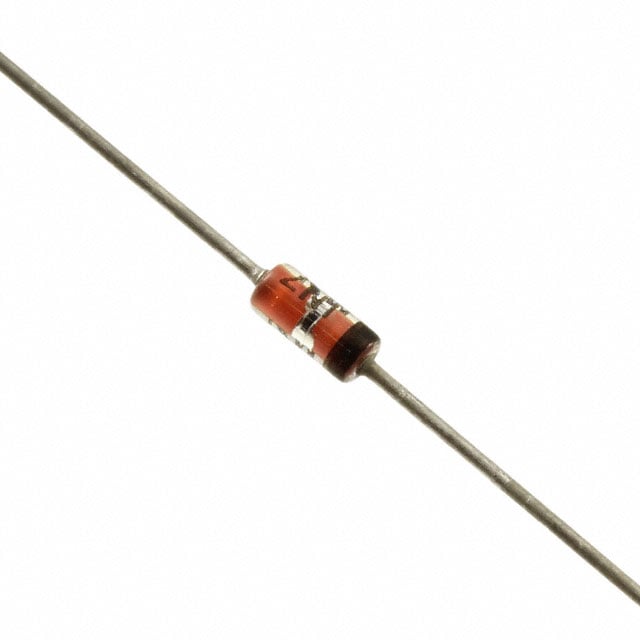

Image shown is a representation only
Manufacturer
Manufacturer No
JANTX1N3595-1
Quantity
25
Availability
In Stock
Package
DO-204AH, DO-35, Axial
Packaging
Bulk
Description
DIODE STD 125V 150MA DO204AH
Detailed Description
Diode 125 V 150mA Through Hole DO-204AH (DO-35)
DataSheet
Mfr
Microchip Technology
Grade
Military
Speed
Small Signal =< 200mA (Io), Any Speed
Packaging
Bulk
Technology
Standard
Part Status
Active
Mounting Type
Through Hole
Qualification
MIL-S-19500-241
Package / Case
DO-204AH, DO-35, Axial
Base Product Number
1N3595
Supplier Device Package
DO-204AH (DO-35)
Reverse Recovery Time (trr)
3 µs
Current - Reverse Leakage @ Vr
1 nA @ 125 V
Voltage - DC Reverse (Vr) (Max)
125 V
Current - Average Rectified (Io)
150mA
Operating Temperature - Junction
-65°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
920 mV @ 100 mA
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Grade | Military |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Packaging | Bulk |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | MIL-S-19500-241 |
| Package / Case | DO-204AH, DO-35, Axial |
| Base Product Number | 1N3595 |
| Supplier Device Package | DO-204AH (DO-35) |
| Reverse Recovery Time (trr) | 3 µs |
| Current - Reverse Leakage @ Vr | 1 nA @ 125 V |
| Voltage - DC Reverse (Vr) (Max) | 125 V |
| Current - Average Rectified (Io) | 150mA |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 100 mA |
