Microchip Technology ATWINC1500B-MU-Y

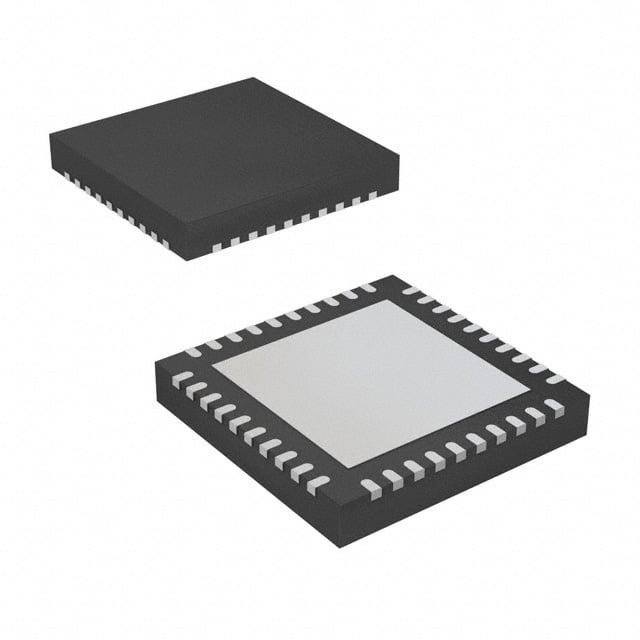

Image shown is a representation only
Manufacturer
Manufacturer No
ATWINC1500B-MU-Y
Package
40-VFQFN Exposed Pad
Packaging
Tray
Description
IC RF TXRX+MCU WIFI 40QFN
Detailed Description
IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 40-VFQFN Exposed Pad
DataSheet
Mfr
Microchip Technology
GPIO
9
Type
TxRx + MCU
Protocol
802.11b/g/n
Frequency
2.4GHz
Packaging
Tray
Modulation
CCK, DSSS, OFDM
Memory Size
4MB Flash, 128kB ROM, 224kB RAM
Part Status
Active
Sensitivity
-98dBm
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Power - Output
20.5dBm
Data Rate (Max)
72.2Mbps
Voltage - Supply
2.7V ~ 3.6V
Serial Interfaces
I2C, SDIO, SPI, UART
RF Family/Standard
WiFi
Base Product Number
ATWINC1500
Current - Receiving
22mA ~ 58.5mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
22mA ~ 294mA
Supplier Device Package
40-QFN (5x5)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| GPIO | 9 |
| Type | TxRx + MCU |
| Protocol | 802.11b/g/n |
| Frequency | 2.4GHz |
| Packaging | Tray |
| Modulation | CCK, DSSS, OFDM |
| Memory Size | 4MB Flash, 128kB ROM, 224kB RAM |
| Part Status | Active |
| Sensitivity | -98dBm |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Power - Output | 20.5dBm |
| Data Rate (Max) | 72.2Mbps |
| Voltage - Supply | 2.7V ~ 3.6V |
| Serial Interfaces | I2C, SDIO, SPI, UART |
| RF Family/Standard | WiFi |
| Base Product Number | ATWINC1500 |
| Current - Receiving | 22mA ~ 58.5mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 22mA ~ 294mA |
| Supplier Device Package | 40-QFN (5x5) |
