Step1: Product
Microchip Technology ATA6285N-PNQW

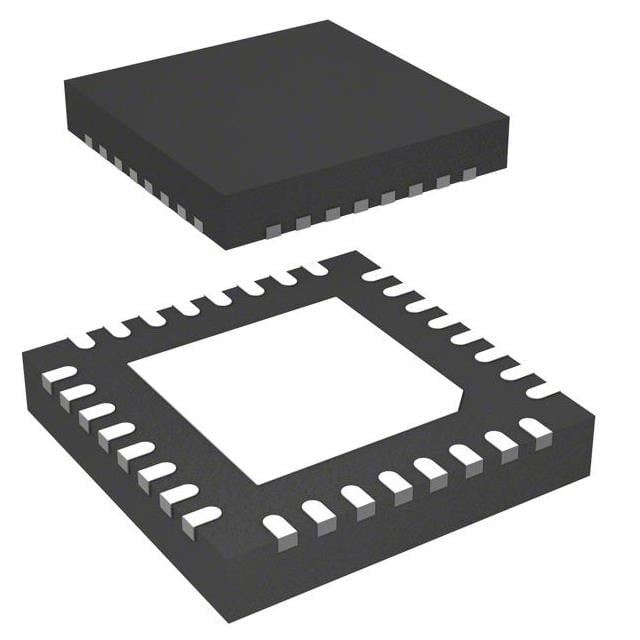

Image shown is a representation only
Manufacturer
Manufacturer No
ATA6285N-PNQW
Package
32-VFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
RF TX IC ASK/FSK 315MHZ 32VFQFN
Detailed Description
RF Transmitter ASK, FSK 315MHz 6dBm 20kbps PCB, Surface Mount Antenna 32-VFQFN Exposed Pad
Datasheet
Frequency
315MHz
Packaging
Tape & Reel (TR)
Memory Size
4KB ROM, 1KB RAM, 1KB EEPROM
Applications
TPM (Tire Pressure Monitor)
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Data Interface
PCB, Surface Mount
Package / Case
32-VFQFN Exposed Pad
Power - Output
6dBm
Data Rate (Max)
20kbps
Voltage - Supply
2V ~ 3.6V
Antenna Connector
PCB, Surface Mount
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 125°C
Current - Transmitting
8.5mA
Modulation or Protocol
ASK, FSK
Supplier Device Package
32-QFN (5x5)
| Attribute | Value |
|---|---|
| Frequency | 315MHz |
| Packaging | Tape & Reel (TR) |
| Memory Size | 4KB ROM, 1KB RAM, 1KB EEPROM |
| Applications | TPM (Tire Pressure Monitor) |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Data Interface | PCB, Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Power - Output | 6dBm |
| Data Rate (Max) | 20kbps |
| Voltage - Supply | 2V ~ 3.6V |
| Antenna Connector | PCB, Surface Mount |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 125°C |
| Current - Transmitting | 8.5mA |
| Modulation or Protocol | ASK, FSK |
| Supplier Device Package | 32-QFN (5x5) |
