Step1: Product
Microchip Technology AT94S40AL-25DGJ

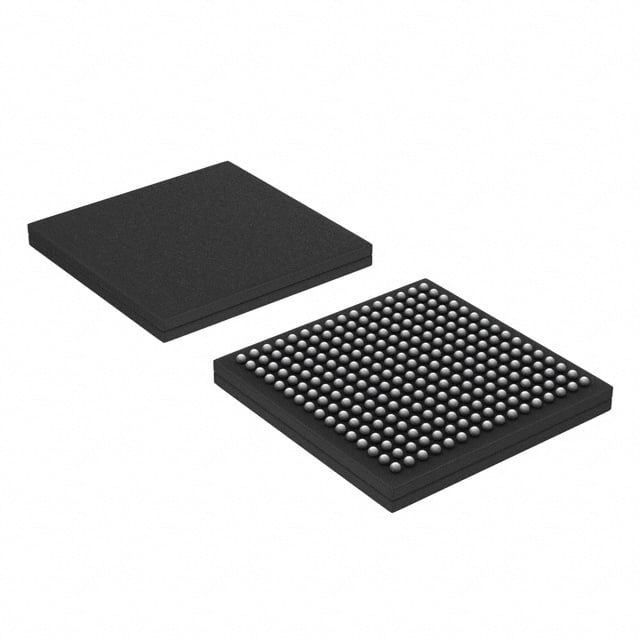

Image shown is a representation only
Manufacturer
Manufacturer No
AT94S40AL-25DGJ
Package
256-LBGA, CABGA
Packaging
Tray
Description
IC FPSLIC 40KGATE 25MHZ 256CABGA
Detailed Description
Field Programmable 8-Bit AVR 40K Gates 256-CABGA (17x17)
DataSheet
Speed
16 MHz
Series
FPSLIC®
Core Type
8-Bit AVR
FPGA SRAM
18kb
Interface
I2C, UART
Packaging
Tray
FPGA Gates
40K
EEPROM Size
1M x 8
Part Status
Active
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
FPGA Registers
2862
Package / Case
256-LBGA, CABGA
Data SRAM Bytes
4K ~ 16K
FPGA Core Cells
2304
Voltage - Supply
3V ~ 3.6V
Program SRAM Bytes
20K-32K
Base Product Number
AT94S40
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
256-CABGA (17x17)
| Attribute | Value |
|---|---|
| Speed | 16 MHz |
| Series | FPSLIC® |
| Core Type | 8-Bit AVR |
| FPGA SRAM | 18kb |
| Interface | I2C, UART |
| Packaging | Tray |
| FPGA Gates | 40K |
| EEPROM Size | 1M x 8 |
| Part Status | Active |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| FPGA Registers | 2862 |
| Package / Case | 256-LBGA, CABGA |
| Data SRAM Bytes | 4K ~ 16K |
| FPGA Core Cells | 2304 |
| Voltage - Supply | 3V ~ 3.6V |
| Program SRAM Bytes | 20K-32K |
| Base Product Number | AT94S40 |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 256-CABGA (17x17) |
