Step1: Product
Microchip Technology AT86RF215-ZU

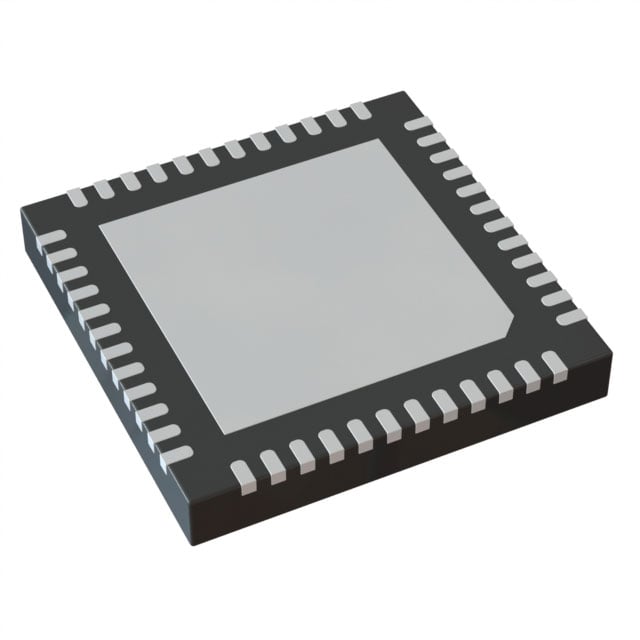

Image shown is a representation only
Manufacturer
Manufacturer No
AT86RF215-ZU
Quantity
2
Availability
In Stock
Package
48-VFQFN Exposed Pad
Packaging
Tray
Description
IC RF TXRX 802.15.4 48VQFN
Detailed Description
IC RF TxRx Only 802.15.4, General ISM < 1GHz 389.5MHz ~ 510MHz, 779MHz ~ 1.02GHz, 2.4GHz 48-VFQFN Exposed Pad
Datasheet
Mfr
Microchip Technology
Type
TxRx Only
Frequency
389.5MHz ~ 510MHz, 779MHz ~ 1.02GHz, 2.4GHz
Packaging
Tray
Modulation
FSK, OFDM, O-QPSK
Sensitivity
-123dBm
Mounting Type
Surface Mount
Package / Case
48-VFQFN Exposed Pad
Power - Output
16dBm
Data Rate (Max)
2.4Mbps
Voltage - Supply
1.8V ~ 3.6V
Serial Interfaces
SPI
RF Family/Standard
802.15.4, General ISM < 1GHz
Base Product Number
AT86RF215
Current - Receiving
5mA ~ 33mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
62mA ~ 64mA
Supplier Device Package
48-VQFN (7x7)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Type | TxRx Only |
| Frequency | 389.5MHz ~ 510MHz, 779MHz ~ 1.02GHz, 2.4GHz |
| Packaging | Tray |
| Modulation | FSK, OFDM, O-QPSK |
| Sensitivity | -123dBm |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 16dBm |
| Data Rate (Max) | 2.4Mbps |
| Voltage - Supply | 1.8V ~ 3.6V |
| Serial Interfaces | SPI |
| RF Family/Standard | 802.15.4, General ISM < 1GHz |
| Base Product Number | AT86RF215 |
| Current - Receiving | 5mA ~ 33mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 62mA ~ 64mA |
| Supplier Device Package | 48-VQFN (7x7) |
