Microchip Technology APT75GP120B2G

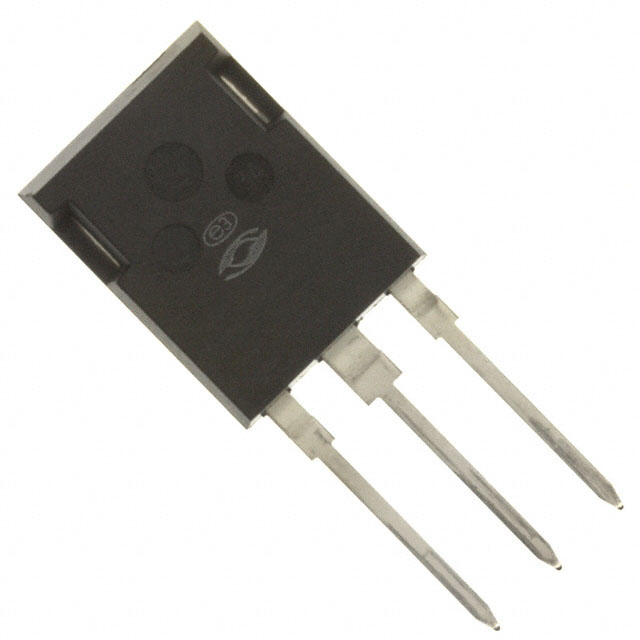

Image shown is a representation only
Manufacturer
Manufacturer No
APT75GP120B2G
Quantity
3
Availability
In Stock
Package
TO-247-3 Variant
Packaging
Tube
Description
IGBT PT 1200V 100A
Detailed Description
IGBT PT 1200 V 100 A 1042 W Through Hole
Datasheet
Series
POWER MOS 7®
IGBT Type
PT
Packaging
Tube
Input Type
Standard
Gate Charge
320 nC
Power - Max
1042 W
Manufacturer
Microchip Technology
Mounting Type
Through Hole
Package / Case
TO-247-3 Variant
Test Condition
600V, 75A, 5Ohm, 15V
Switching Energy
1620µJ (on), 2500µJ (off)
Base Product Number
APT75GP120
Td (on/off) @ 25°C
20ns/163ns
Operating Temperature
-55°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic
3.9V @ 15V, 75A
Current - Collector (Ic) (Max)
100 A
Current - Collector Pulsed (Icm)
300 A
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Series | POWER MOS 7® |
| IGBT Type | PT |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 320 nC |
| Power - Max | 1042 W |
| Manufacturer | Microchip Technology |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Test Condition | 600V, 75A, 5Ohm, 15V |
| Switching Energy | 1620µJ (on), 2500µJ (off) |
| Base Product Number | APT75GP120 |
| Td (on/off) @ 25°C | 20ns/163ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 75A |
| Current - Collector (Ic) (Max) | 100 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
