Microchip Technology 2N3749

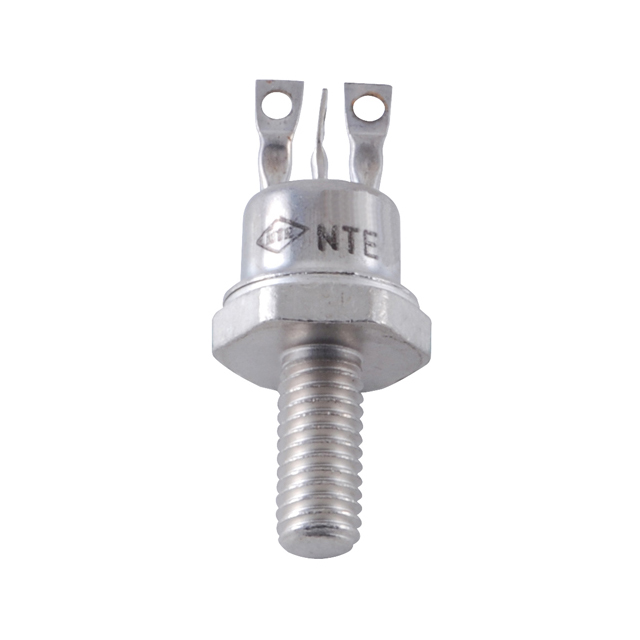

Image shown is a representation only
Manufacturer
Manufacturer No
2N3749
Package
TO-111-4, Stud
Packaging
Bulk
Description
TRANS NPN 80V 5A TO-111
Detailed Description
Bipolar (BJT) Transistor NPN 80 V 5 A 2 W Stud Mount TO-111
DataSheet
Mfr
Microchip Technology
Packaging
Bulk
Part Status
Active
Power - Max
2 W
Mounting Type
Stud Mount
Package / Case
TO-111-4, Stud
Transistor Type
NPN
Operating Temperature
-65°C ~ 200°C (TJ)
Supplier Device Package
TO-111
Vce Saturation (Max) @ Ib, Ic
1.5V @ 500mA, 5A
Current - Collector (Ic) (Max)
5 A
Current - Collector Cutoff (Max)
20µA
DC Current Gain (hFE) (Min) @ Ic, Vce
40 @ 1A, 2V
Voltage - Collector Emitter Breakdown (Max)
80 V
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 2 W |
| Mounting Type | Stud Mount |
| Package / Case | TO-111-4, Stud |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Supplier Device Package | TO-111 |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 500mA, 5A |
| Current - Collector (Ic) (Max) | 5 A |
| Current - Collector Cutoff (Max) | 20µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 1A, 2V |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
