Microchip Technology 2N3500U4/TR

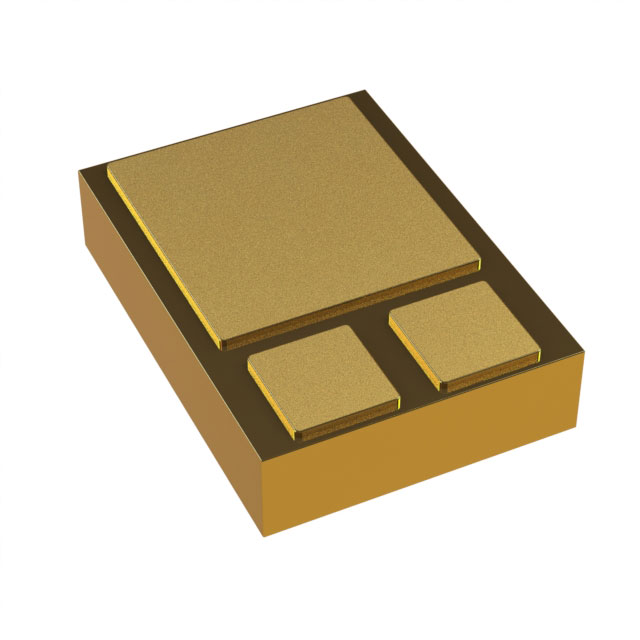

Image shown is a representation only
Manufacturer
Manufacturer No
2N3500U4/TR
Package
3-SMD, No Lead
Packaging
Tape & Reel (TR)
Description
TRANS NPN 150V 0.3A U4
Detailed Description
Bipolar (BJT) Transistor NPN 150 V 300 mA 1 W Surface Mount U4
DataSheet
Mfr
Microchip Technology
Packaging
Tape & Reel (TR)
Part Status
Active
Power - Max
1 W
Mounting Type
Surface Mount
Package / Case
3-SMD, No Lead
Transistor Type
NPN
Operating Temperature
-65°C ~ 200°C (TJ)
Supplier Device Package
U4
Vce Saturation (Max) @ Ib, Ic
400mV @ 15mA, 150mA
Current - Collector (Ic) (Max)
300 mA
Current - Collector Cutoff (Max)
50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
40 @ 150mA, 10V
Voltage - Collector Emitter Breakdown (Max)
150 V
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Power - Max | 1 W |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Supplier Device Package | U4 |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 15mA, 150mA |
| Current - Collector (Ic) (Max) | 300 mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 150 V |
