Microchip Technology 1N5804/TR

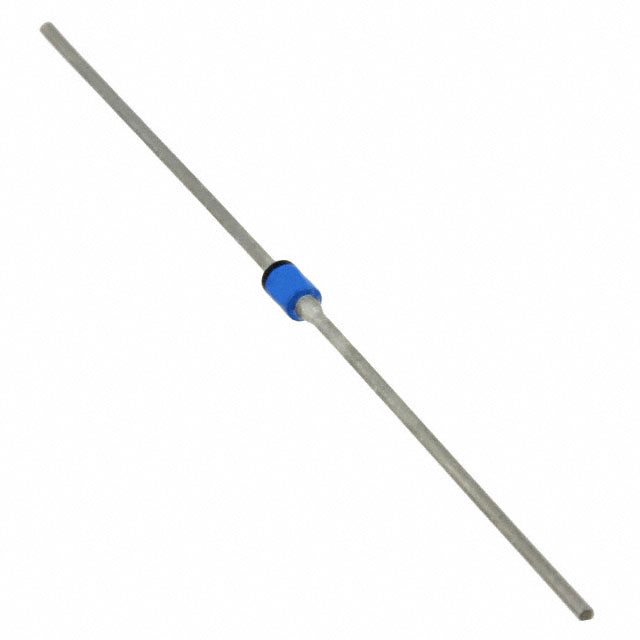

Image shown is a representation only
Manufacturer
Manufacturer No
1N5804/TR
Package
A, Axial
Packaging
Tape & Reel (TR)
Description
DIODE STANDARD 100V 1A AXIAL
Detailed Description
Diode 100 V 1A Through Hole A, Axial
DataSheet
Mfr
Microchip Technology
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Tape & Reel (TR)
Technology
Standard
Part Status
Active
Mounting Type
Through Hole
Package / Case
A, Axial
Capacitance @ Vr, F
25pF @ 10V, 1MHz
Supplier Device Package
A, Axial
Reverse Recovery Time (trr)
25 ns
Current - Reverse Leakage @ Vr
1 µA @ 100 V
Voltage - DC Reverse (Vr) (Max)
100 V
Current - Average Rectified (Io)
1A
Operating Temperature - Junction
-65°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
875 mV @ 1 A
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Tape & Reel (TR) |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | A, Axial |
| Capacitance @ Vr, F | 25pF @ 10V, 1MHz |
| Supplier Device Package | A, Axial |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 1 A |
