Step1: Product
Micrel Inc. MIC2507BM

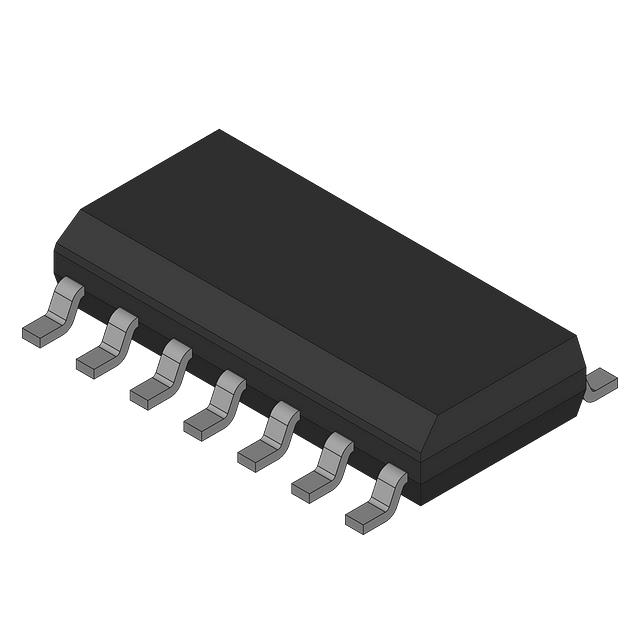

Image shown is a representation only
Manufacturer
Manufacturer No
MIC2507BM
Package
14-SOIC (0.154", 3.90mm Width)
Packaging
Bulk
Description
QUAD INTEGRATED HIGH-SIDE SWITCH
Detailed Description
Power Switch/Driver 1:1 N-Channel 1A 14-SOP
Datasheet
Mfr
Micrel Inc.
Features
Slew Rate Controlled, Status Flag
Interface
On/Off
Packaging
Bulk
Input Type
Non-Inverting
Output Type
N-Channel
Switch Type
General Purpose
Rds On (Typ)
120mOhm
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.154", 3.90mm Width)
Voltage - Load
2.7V ~ 7.5V
Fault Protection
Current Limiting (Adjustable), Over Temperature
Number of Outputs
4
Base Product Number
MIC2507
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
1A
Supplier Device Package
14-SOP
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Micrel Inc. |
| Features | Slew Rate Controlled, Status Flag |
| Interface | On/Off |
| Packaging | Bulk |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 120mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Voltage - Load | 2.7V ~ 7.5V |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Number of Outputs | 4 |
| Base Product Number | MIC2507 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 1A |
| Supplier Device Package | 14-SOP |
| Voltage - Supply (Vcc/Vdd) | Not Required |
