Step1: Product

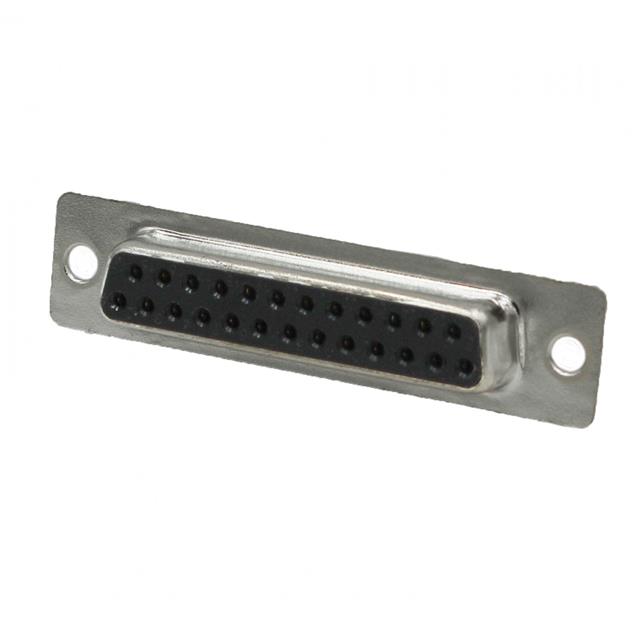

MH Connectors MHDB25SS
Image shown is a representation only
Manufacturer
Manufacturer No
MHDB25SS
Quantity
720
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB RCPT 25POS SOLDER CUP
Detailed Description
25 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
MH Connectors
Color
Black
Series
MHDB
Packaging
Tray
Part Status
Active
Termination
Solder Cup
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
250V
Connector Style
D-Sub
Contact Material
Brass
Primary Material
Metal
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
25
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin-Nickel Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | MH Connectors |
| Color | Black |
| Series | MHDB |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Primary Material | Metal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 25 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
