Step1: Product

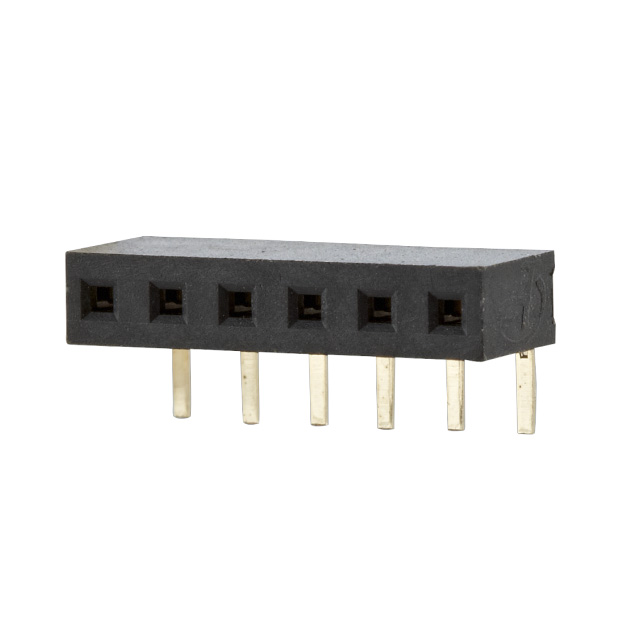

METZ CONNECT USA Inc. FR20C06HBNN
Image shown is a representation only
Manufacturer
Manufacturer No
FR20C06HBNN
Packaging
Box
Description
RECEPTACLE, THR, SINGLE ROW, 2.0
Detailed Description
6 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
DataSheet
Mfr
METZ CONNECT USA Inc.
Style
Board to Board
Packaging
Box
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.110" (2.79mm)
Base Product Number
FR20C06HB
Insulation Material
Polyethylene Terephthalate (PET), Polyester
Number of Positions
6
Contact Length - Post
0.100" (2.54mm)
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | METZ CONNECT USA Inc. |
| Style | Board to Board |
| Packaging | Box |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.110" (2.79mm) |
| Base Product Number | FR20C06HB |
| Insulation Material | Polyethylene Terephthalate (PET), Polyester |
| Number of Positions | 6 |
| Contact Length - Post | 0.100" (2.54mm) |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | Flash |
