Step1: Product
Meritek P6SMB200A

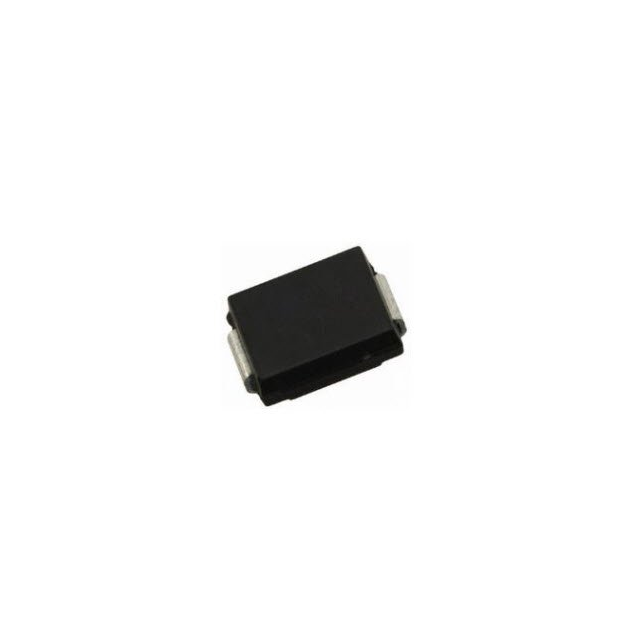

Image shown is a representation only
Manufacturer
Manufacturer No
P6SMB200A
Quantity
2300
Availability
In Stock
Package
DO-214AA, SMB
Packaging
Strip
Description
TVS DIODE 171VWM 274VC
Detailed Description
274V Clamp 2.19A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
DataSheet
Mfr
Meritek
Type
Zener
Series
P6SMB
Packaging
Strip
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
DO-214AA, SMB
Power - Peak Pulse
600W
Operating Temperature
-55°C ~ 150°C
Supplier Device Package
DO-214AA (SMB)
Unidirectional Channels
1
Voltage - Breakdown (Min)
190V
Voltage - Clamping (Max) @ Ipp
274V
Voltage - Reverse Standoff (Typ)
171V
Current - Peak Pulse (10/1000µs)
2.19A
| Attribute | Value |
|---|---|
| Mfr | Meritek |
| Type | Zener |
| Series | P6SMB |
| Packaging | Strip |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Power - Peak Pulse | 600W |
| Operating Temperature | -55°C ~ 150°C |
| Supplier Device Package | DO-214AA (SMB) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 190V |
| Voltage - Clamping (Max) @ Ipp | 274V |
| Voltage - Reverse Standoff (Typ) | 171V |
| Current - Peak Pulse (10/1000µs) | 2.19A |
