Step1: Product

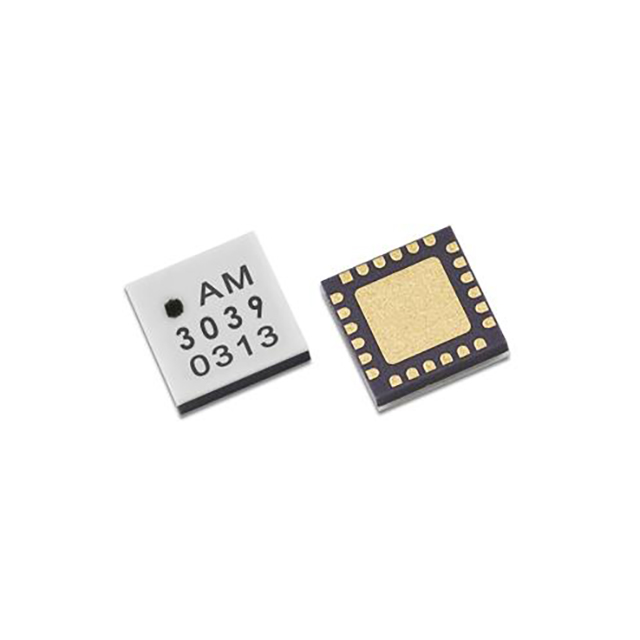

Mercury Systems, Inc. AM3039
Image shown is a representation only
Manufacturer
Manufacturer No
AM3039
Package
24-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TUNABLE LOWPASS FILTER, 9 TO 18
Detailed Description
13.5GHz Center Frequency Low Pass RF Filter (Radio Frequency) 9GHz Bandwidth 5.9dB 24-VFQFN Exposed Pad
DataSheet
Bandwidth
9GHz
Frequency
13.5GHz Center
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Low Pass
Part Status
Active
Height (Max)
0.039" (1.00mm)
Manufacturer
Mercury Systems, Inc.
Mounting Type
Surface Mount
Insertion Loss
5.9dB
Package / Case
24-VFQFN Exposed Pad
Size / Dimension
0.157" L x 0.157" W (4.00mm x 4.00mm)
| Attribute | Value |
|---|---|
| Bandwidth | 9GHz |
| Frequency | 13.5GHz Center |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Low Pass |
| Part Status | Active |
| Height (Max) | 0.039" (1.00mm) |
| Manufacturer | Mercury Systems, Inc. |
| Mounting Type | Surface Mount |
| Insertion Loss | 5.9dB |
| Package / Case | 24-VFQFN Exposed Pad |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
