Step1: Product

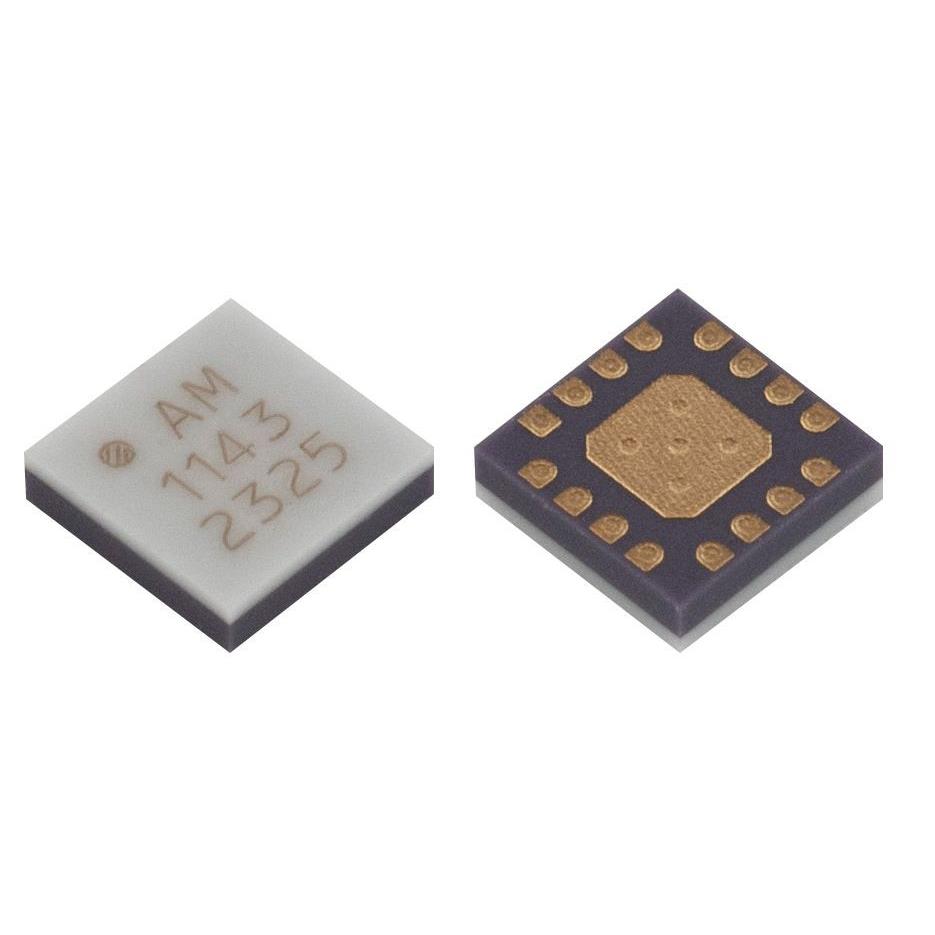

Mercury Systems, Inc. AM1143
Image shown is a representation only
Manufacturer
Manufacturer No
AM1143
Package
16-QFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DC-6 GHZ HIGH P1DB AMP (+27DBM)
Detailed Description
RF Amplifier IC 20MHz ~ 6GHz 16-QFN (3x3)
DataSheet
Gain
20dB
P1dB
27dBm
Frequency
20MHz ~ 6GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Mercury Systems, Inc.
Noise Figure
1.5dB
Mounting Type
Surface Mount
Package / Case
16-QFN Exposed Pad
Current - Supply
200mA
Voltage - Supply
8V
Supplier Device Package
16-QFN (3x3)
| Attribute | Value |
|---|---|
| Gain | 20dB |
| P1dB | 27dBm |
| Frequency | 20MHz ~ 6GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Mercury Systems, Inc. |
| Noise Figure | 1.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 16-QFN Exposed Pad |
| Current - Supply | 200mA |
| Voltage - Supply | 8V |
| Supplier Device Package | 16-QFN (3x3) |
