Step1: Product
Mercury Electronics Ind. Co. Ltd MQF326D25-1000.000-1.0/-40+85

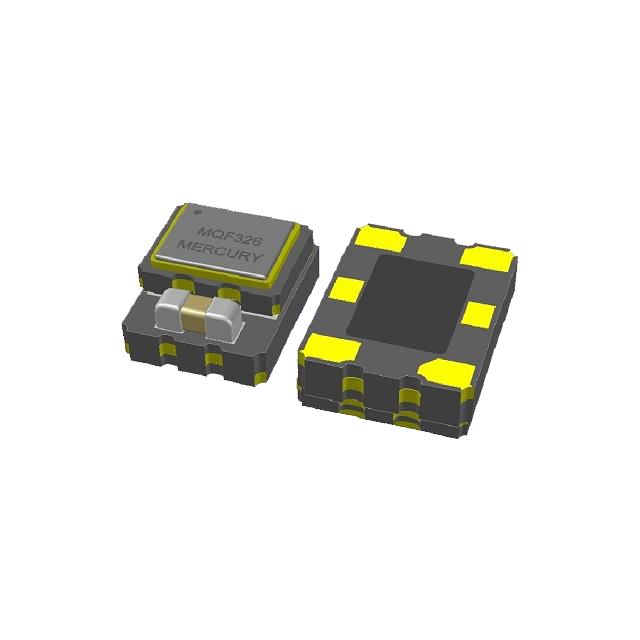

Image shown is a representation only
Manufacturer
Manufacturer No
MQF326D25-1000.000-1.0/-40+85
Package
6-SMD, No Lead
Packaging
Strip
Description
XTAL OSC TCXO 1.0000GHZ LVDS
Detailed Description
1 GHz TCXO LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Datasheet
Mfr
Mercury Electronics Ind. Co. Ltd
Type
TCXO
Output
LVDS
Series
QuikXO
Function
Enable/Disable
Frequency
1 GHz
Packaging
Strip
Mounting Type
Surface Mount
Base Resonator
Crystal
Package / Case
6-SMD, No Lead
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Voltage - Supply
2.5V
Frequency Stability
±1ppm
Height - Seated (Max)
0.063" (1.60mm)
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
35mA
Current - Supply (Disable) (Max)
18mA (Typ)
| Attribute | Value |
|---|---|
| Mfr | Mercury Electronics Ind. Co. Ltd |
| Type | TCXO |
| Output | LVDS |
| Series | QuikXO |
| Function | Enable/Disable |
| Frequency | 1 GHz |
| Packaging | Strip |
| Mounting Type | Surface Mount |
| Base Resonator | Crystal |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Voltage - Supply | 2.5V |
| Frequency Stability | ±1ppm |
| Height - Seated (Max) | 0.063" (1.60mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 35mA |
| Current - Supply (Disable) (Max) | 18mA (Typ) |
