Step1: Product

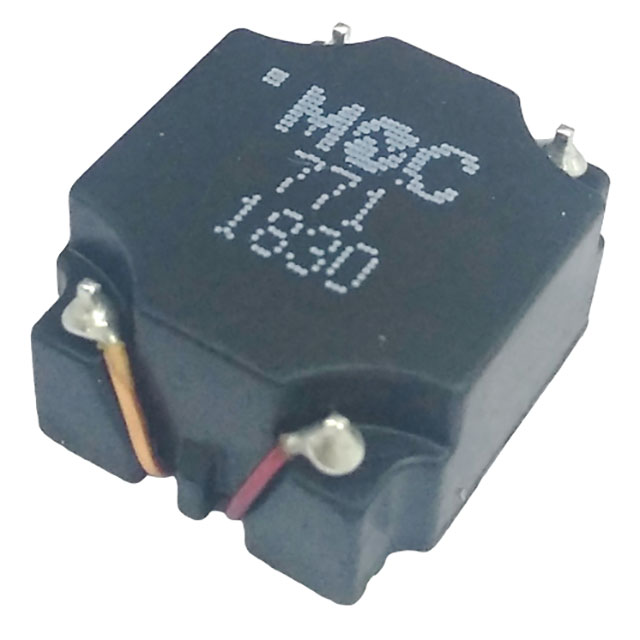

Mentech Technology USA Inc. CM1385SG771N
Image shown is a representation only
Manufacturer
Manufacturer No
CM1385SG771N
Packaging
Tape & Reel (TR)
Description
CMC 770UH 3.6A 2LN SMD
Detailed Description
770 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 3.6A DCR 25mOhm
DataSheet
Packaging
Tape & Reel (TR)
Filter Type
Signal Line
Part Status
Active
Height (Max)
0.394" (10.00mm)
Manufacturer
Mentech Technology USA Inc.
Mounting Type
Surface Mount
Number of Lines
2
Size / Dimension
0.768" L x 0.669" W (19.50mm x 17.00mm)
Current Rating (Max)
3.6A
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
770 µH @ 100 kHz
DC Resistance (DCR) (Max)
25mOhm
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR) |
| Filter Type | Signal Line |
| Part Status | Active |
| Height (Max) | 0.394" (10.00mm) |
| Manufacturer | Mentech Technology USA Inc. |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Size / Dimension | 0.768" L x 0.669" W (19.50mm x 17.00mm) |
| Current Rating (Max) | 3.6A |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 770 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 25mOhm |
