Step1: Product
MEC Switches 3FTH905

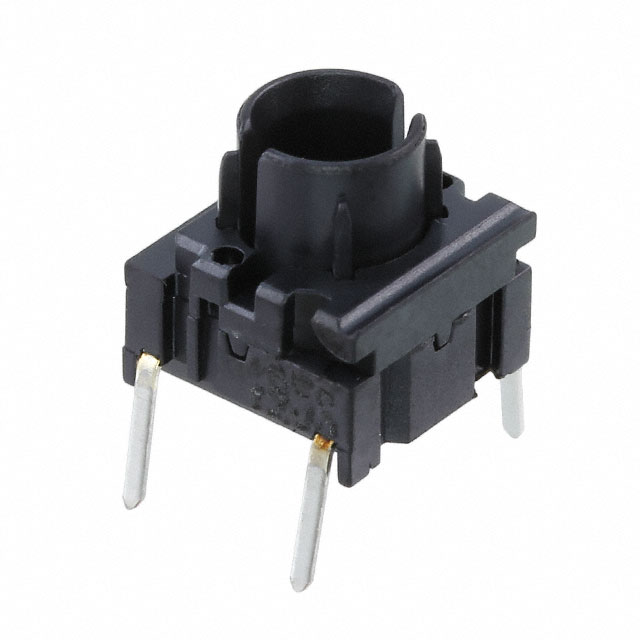

Image shown is a representation only
Manufacturer
Manufacturer No
3FTH905
Packaging
Bulk
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
DataSheet
Mfr
MEC Switches
Series
Multimec® 3
Circuit
SPST-NO
Outline
10.10mm x 10.10mm
Packaging
Bulk
Part Status
Obsolete
Illumination
Illuminated
Actuator Type
Plunger for Cap
Mounting Type
Through Hole
Switch Travel
1.00mm
Mechanical Life
10,000,000 Cycles
Operating Force
357gf
Switch Function
Off-Mom
Actuator Material
Polyphenylene Sulfide (PPS)
Termination Style
PC Pin
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
3FTH9
Actuator Orientation
Top Actuated
Operating Temperature
-20°C ~ 80°C
Contact Rating @ Voltage
0.05A @ 24VDC
Actuator Height off PCB, Vertical
10.40mm
| Attribute | Value |
|---|---|
| Mfr | MEC Switches |
| Series | Multimec® 3 |
| Circuit | SPST-NO |
| Outline | 10.10mm x 10.10mm |
| Packaging | Bulk |
| Part Status | Obsolete |
| Illumination | Illuminated |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Switch Travel | 1.00mm |
| Mechanical Life | 10,000,000 Cycles |
| Operating Force | 357gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 3FTH9 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -20°C ~ 80°C |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Height off PCB, Vertical | 10.40mm |
