Step1: Product

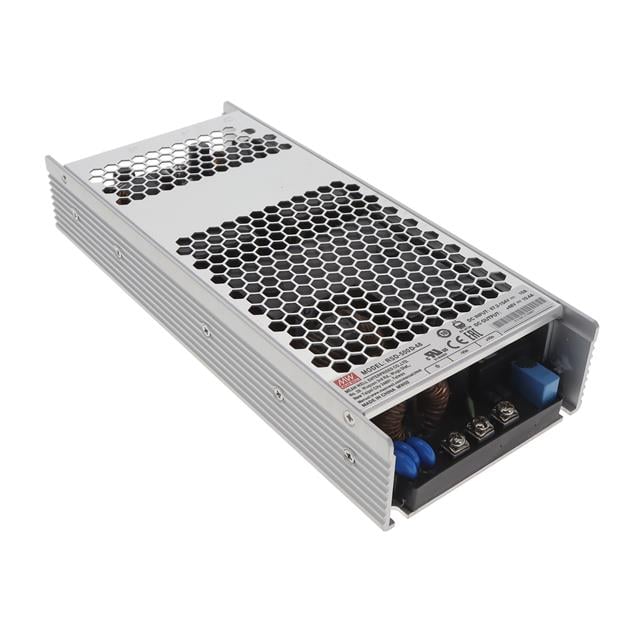

MEAN WELL USA Inc. RSD-500B-12
Image shown is a representation only
Manufacturer
Manufacturer No
RSD-500B-12
Packaging
Box
Description
DC/DC CONVERTER 12V 420W
Detailed Description
Enclosed DC DC Converter 1 Output 12V 35A 33.6V Input
DataSheet
Type
Enclosed
Series
RSD-500 (500W)
Packaging
Box
Efficiency
92%
Part Status
Active
Applications
ITE (Commercial), Railway
Manufacturer
MEAN WELL USA Inc.
Mounting Type
Chassis Mount
Power (Watts)
420W
Approval Agency
CB, CE, cURus, EAC, RCM
Size / Dimension
9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm)
Number of Outputs
1
Voltage - Output 1
12V
Base Product Number
RSD-500
Voltage - Isolation
4 kV
Operating Temperature
-40°C ~ 80°C (With Derating)
Voltage - Input (Max)
33.6V
Voltage - Input (Min)
16.8V
Current - Output (Max)
35A
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | RSD-500 (500W) |
| Packaging | Box |
| Efficiency | 92% |
| Part Status | Active |
| Applications | ITE (Commercial), Railway |
| Manufacturer | MEAN WELL USA Inc. |
| Mounting Type | Chassis Mount |
| Power (Watts) | 420W |
| Approval Agency | CB, CE, cURus, EAC, RCM |
| Size / Dimension | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Base Product Number | RSD-500 |
| Voltage - Isolation | 4 kV |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Voltage - Input (Max) | 33.6V |
| Voltage - Input (Min) | 16.8V |
| Current - Output (Max) | 35A |
