Step1: Product

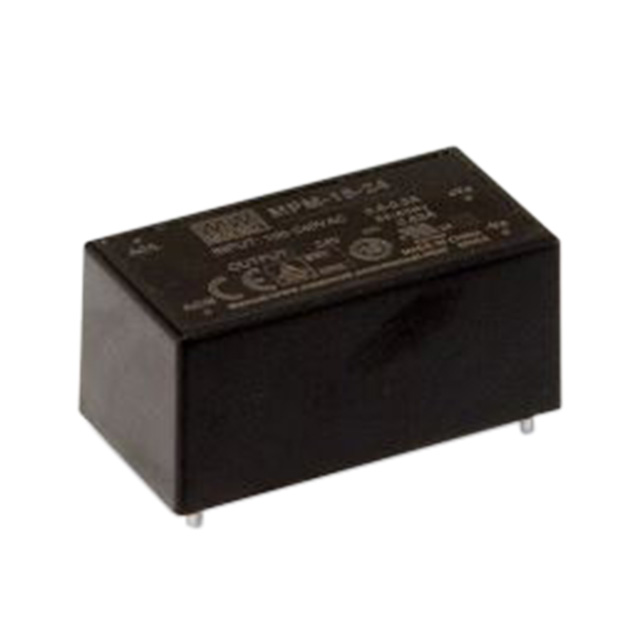

MEAN WELL USA Inc. MPM-20-3.3
Image shown is a representation only
Manufacturer
Manufacturer No
MPM-20-3.3
Package
4-DIP Module
Packaging
Tray
Description
AC/DC CONVERTER 3.3V 15W
Detailed Description
Enclosed AC DC Converters 1 Output 3.3V 4.5A 80 ~ 264 VAC Input
DataSheet
Type
Enclosed
Series
MPM-20 (20W)
Features
Universal Input
Packaging
Tray
Efficiency
81%
Part Status
Active
Applications
Household Appliances, Medical
Manufacturer
MEAN WELL USA Inc.
Mounting Type
Through Hole
Power (Watts)
15 W
Package / Case
4-DIP Module
Approval Agency
CB, CE, cURus, EAC, TUV
Line Regulation
±0.5%
Load Regulation
±0.5%
Voltage - Input
80 ~ 264 VAC
Size / Dimension
2.06" L x 1.07" W x 0.94" H (52.3mm x 27.2mm x 23.8mm)
Number of Outputs
1
Voltage - Output 1
3.3V
Base Product Number
MPM-20
Operating Temperature
-35°C ~ 85°C (With Derating)
Current - Output (Max)
4.5A
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | MPM-20 (20W) |
| Features | Universal Input |
| Packaging | Tray |
| Efficiency | 81% |
| Part Status | Active |
| Applications | Household Appliances, Medical |
| Manufacturer | MEAN WELL USA Inc. |
| Mounting Type | Through Hole |
| Power (Watts) | 15 W |
| Package / Case | 4-DIP Module |
| Approval Agency | CB, CE, cURus, EAC, TUV |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Voltage - Input | 80 ~ 264 VAC |
| Size / Dimension | 2.06" L x 1.07" W x 0.94" H (52.3mm x 27.2mm x 23.8mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Base Product Number | MPM-20 |
| Operating Temperature | -35°C ~ 85°C (With Derating) |
| Current - Output (Max) | 4.5A |
