Step1: Product

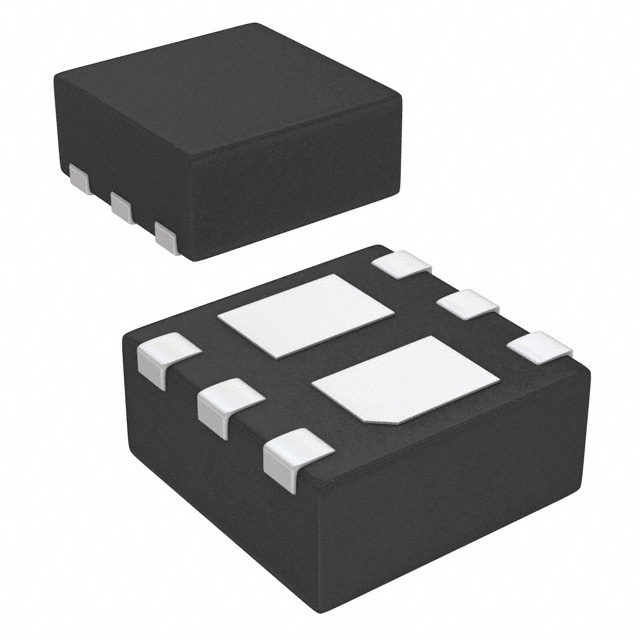

MCC (Micro Commercial Components) MCM2301-TP
Image shown is a representation only
Manufacturer
Manufacturer No
MCM2301-TP
Quantity
1740
Availability
In Stock
Package
6-VDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 20V 3.8A 6DFN
Detailed Description
Mosfet Array 20V 3.8A 1.4W Surface Mount DFN2020-6L
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
1.4W
Manufacturer
MCC (Micro Commercial Components)
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-VDFN Exposed Pad
Vgs(th) (Max) @ Id
900mV @ 250µA
Base Product Number
MCM2301
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
70mOhm @ 1.9A, 4.5V
Supplier Device Package
DFN2020-6L
Gate Charge (Qg) (Max) @ Vgs
14.5nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
880pF @ 6V
Current - Continuous Drain (Id) @ 25°C
3.8A
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 1.4W |
| Manufacturer | MCC (Micro Commercial Components) |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Base Product Number | MCM2301 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 1.9A, 4.5V |
| Supplier Device Package | DFN2020-6L |
| Gate Charge (Qg) (Max) @ Vgs | 14.5nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 880pF @ 6V |
| Current - Continuous Drain (Id) @ 25°C | 3.8A |
